Product Name: DirecTV 4 X 4 Multi-Satellite Multi-Switch & Combiner
This multiswitch is designed to intercept regular programming signals from the 101° DirecTV satellite and seamlessly combine those signals with local channels transmitted from the 72.5° satellite OR intercept regular programming signals from the 101° DirecTV satellite and seamlessly combine those signals with ethnic programming on the 95° satellite. Operate up to 4 receivers. At this time, only the DIRECTV D10 and D11 Receivers come pre-loaded with the software needed to receive programming from two or more dishes. Earlier receivers will not work with this switch. We highly suggest you click or on the picture to learn more about this switch before purchasing

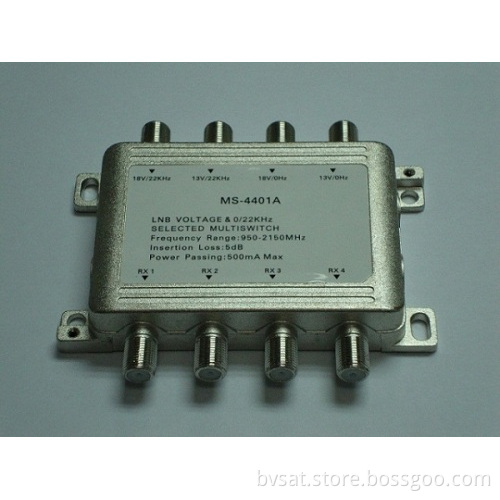

Model Name: MS-4401A
Feature:
Specification:
This multiswitch is designed to intercept regular programming signals from the 101° DirecTV satellite and seamlessly combine those signals with local channels transmitted from the 72.5° satellite OR intercept regular programming signals from the 101° DirecTV satellite and seamlessly combine those signals with ethnic programming on the 95° satellite. Operate up to 4 receivers. At this time, only the DIRECTV D10 and D11 Receivers come pre-loaded with the software needed to receive programming from two or more dishes. Earlier receivers will not work with this switch. We highly suggest you click or on the picture to learn more about this switch before purchasing
Model Name: MS-4401A
Feature:
The 4x4 and the 4x8 Multi-Switches are sealed so they can be used either indoors or outdoors in extreme temperature range from-34°C to +60°C. When placed outdoors, unused F connectors on the 4x4 or the 4x8 should have weather caps, and the cable connection should have weather boots and/or silicone grease.
The 4x4 Multi-Switch and the LNBs connected to it are satellite receiver powered and draw currents from the receivers directly.
It is therefore important to observe the 100-feet max rule (from each receiver to the dish antenna) and the rule of using a copp-er center-conductor RG-6 cable, to minimize the DC drop from each receiver to the dish antenna.
Specification:
| ITEM | TYP | REMARK | |||||
| Frequency response | 950-2150MHz | ||||||
| Inputs | 4SAT | F connectors | |||||
| Outputs | 4 | F connectors | |||||
| Insertion Loss | Sat 950-2150MHz | 5dB | |||||
| Return Loss | Sat in 950-2150MHz | 10dB | |||||
| Sat out 950-2150MHz | 8dB | ||||||
| Isolation | LNB-LNB 950-2150MHz | 35dB | |||||
| OUT-OUT | Sat 950-2150MHz | 30dB | |||||
| H/V | Sat 950-2150MHz | 26dB | |||||
| Switching voltage | 15±1V | ||||||
| Switching commands | 13V,18V,13V/22KHz,18V/22KHz | ||||||
| Switching Adapter | 18V 1.2A | Optional | |||||
