Professional 9 In 24 Subscriber Satellite Multiswitch

Satellite Multiswitches come in many different versions, but they all allow many satellite receivers to share single or some satellite dish and LNB, installation and cabling. They are usually used in hotels, blocks of flats or smaller multi dwelling buildings. They usually accept one aerial input as well as the satellite dish.

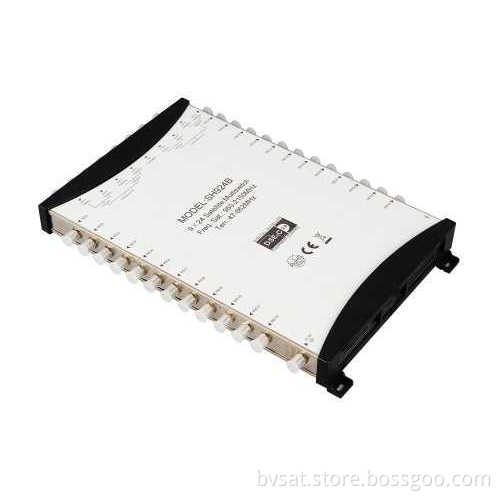

                                                                     Model Name: SH924B

Feature:

8 satellite IF 1 terrestrial TV inputs to 24 outputs for satellite receivers

Allow use of 2 Quatro or up to 4 Dual or Twin LNBs.

Single coaxial cable conveys both satellite and terrestrial signal.

External Power Supply can set up the operational power of LNB.

Sheet metal housing with plastic holder.

All users can view all channels select satellite signal by analogue commands 13V/18V

0/22kHz tone or DiSEqC2.0DiSEqC1.0 and Tone Burst signal provided by receivers

Very low tap loss

Specification:

ITEM				TYP		REMARK
Frequency response				47-2150MHz
Inputs				8SAT+1 Terr		F connectors
Outputs				24		F connectors
Gain		Terr 47-862MHz		–2dB
Insertion Loss		Sat 950-2150MHz		5dB
Return Loss		Terr in 47-862MHz		10dB
		Sat in 950-2150MHz		12dB
		Terr out 47-862MHz		8dB
		Sat out 950-2150MHz		8dB
Isolation		LNB-LNB 950-2150MHz		30dB
		OUT-OUT	Terr 47-862MHz	26dB
			Sat 950-2150MHz	30dB
		H/V	Sat 950-2150MHz	26dB
Switching voltage				15±1V
Switching commands				13V,18V,13V/22KHz, 18V/22KHz,DiSEqC2.0
Power Supply:				90-264VAC/47-63HZ		Optional
