Product name: Protector dish network multi switch 2 in series 2x16 stand-alone factory
Product show:
Features of Protector dish network multi switch 2 in series 2x16 stand-alone factory:
1. 2 satellite inputs
Package information of Protector dish network multi switch 2 in series 2x16 stand-alone factory:
Package photo:
Factory show:
Our sales team:
Our services:
You may also like the following items:
2in series 2x12 stand-alone multiswitch
2in series 2x4 multiswitch stand-alone with zinc die casting

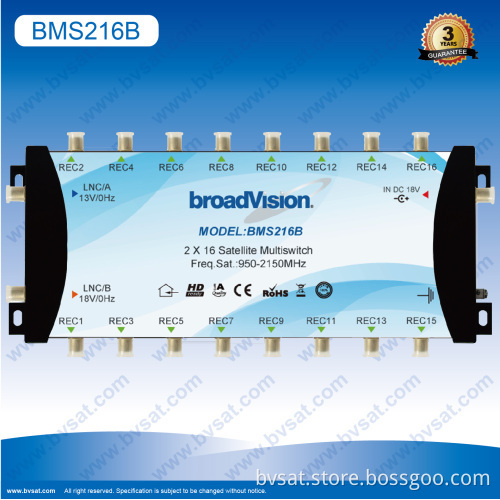

Product show:
Features of Protector dish network multi switch 2 in series 2x16 stand-alone factory:
1. 2 satellite inputs
2. 16 subscriber outputs for end-users
3. Feed from twin/single LNB
4. SAT IF selected by 13V, 18V signal
5. Built-in amplifier
5. Built-in amplifier
6. Low insertion loss and high isolation
7. Compact appearance and easy installation
Specifications of Protector dish network multi switch 2 in series 2x16 stand-alone factory:
Production show:
Q&A show:
Application test show:
Specifications of Protector dish network multi switch 2 in series 2x16 stand-alone factory:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS216B |
|
Description |
Stand-alone 2x16 multiswitch |
|
Inputs/Outputs |
2 in/16 out |
|
Frequency Range |
950-2150MHz |
|
Switching commands |
13V 18V |
|
Switching Voltage |
V:10-14.5V H:15.5-20V |
|
Power Adapter |
IN:100~240V OUT:18V 500mA |
|
Impedance input/output |
75Ω |
|
Dimensions (L,W,H) |
196×110×42 mm |
|
Supply Voltage |
20DC(±1)700mA |
|
DC Max Power Passing |
500 mA |
|
Insertion Loss |
4dB |
5dB |
Return Loss |
12dB |
10dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
35dB |
30dB |
Production show:
Q&A show:
Application test show:
Package information of Protector dish network multi switch 2 in series 2x16 stand-alone factory:
| Model | White box(LxWxH cm) | Carton(LxWxH cm) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS216B | 27*12*6 | 50*29*33 | 7.8 | 20 | 11.5 | 0.048 |
