Sat Tv 2x6 Multiswitch With 6 Satellite Receiver Zinc Die Casting
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Product name:Sat TV 2x6 multiswitch with 6 satellite receiver zinc die casting
Model NO.:
Features of Sat TV 2x6 multiswitch with 6 satellite receiver zinc die casting:
Specifications of Sat TV 2x6 multiswitch with 6 satellite receiver zinc die casting:
Production:
Q & A:
Test:
Package information of Sat TV 2x6 multiswitch with 6 satellite receiver zinc die casting:
Package and shipping photo:
Tips:
1. Built-in amplifier, no need any power adapter supporting;
2. SAT-IF-PATHs to the subscribers are active and supplied by the receiver;
3. Suitable for residential multiple LNBs reception.
Our factory:
Our service:
Model NO.:
Features of Sat TV 2x6 multiswitch with 6 satellite receiver zinc die casting:
1. 2 satellite inputs
2. 6 subscribers outputs
3. Bulit-in power supply
4. Power indicator design ensures more secure usage
5. Excellent quality component, professional amplification design and low loss
6. OEM/ODM service available
7. 3 years warranty

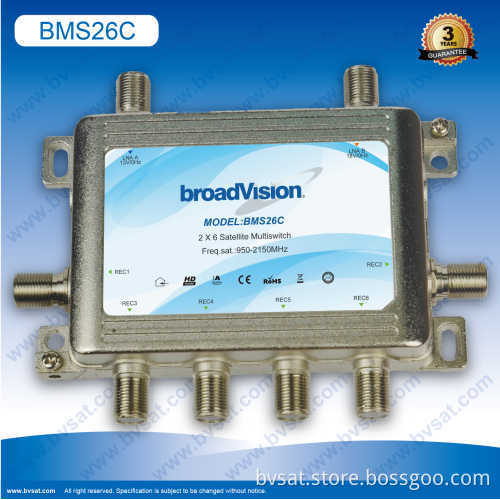

Photos of Sat TV 2x6 multiswitch with 6 satellite receiver zinc die casting:
Photos of Sat TV 2x6 multiswitch with 6 satellite receiver zinc die casting:
Specifications of Sat TV 2x6 multiswitch with 6 satellite receiver zinc die casting:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS26C |
|
Description |
Stand-alone 2x6 multiswitch |
|
Inputs/Outputs |
2 in/6 out |
|
Frequency Range |
950-2150MHz |
|
Switching commands |
13V 18V |
|
Switching Voltage |
V:10-14.5V H:15-20V |
|
Impedance input/output |
75Ω |
|
Dimensions (L,W,H) |
120×92×21 mm |
|
Supply Voltage |
20DC(±1)700mA |
|
DC Max Power Passing |
500 mA |
|
Insertion Loss |
3dB |
4dB |
Return Loss |
12dB |
10dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
35dB |
30dB |
Production:
Q & A:
Test:
Package information of Sat TV 2x6 multiswitch with 6 satellite receiver zinc die casting:
| Model | White box(LxWxH cm) | Carton(LxWxH cm) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS26C | 11.2*9.5*2.2 | 33*23*20 | 10 | 50 | 13.5 | 0.015 |
Package and shipping photo:
Tips:
1. Built-in amplifier, no need any power adapter supporting;
2. SAT-IF-PATHs to the subscribers are active and supplied by the receiver;
3. Suitable for residential multiple LNBs reception.
4. Matriax routes between any input to any output.
5. Design good for indoor usage.
5. Design good for indoor usage.
