5 In 8 Out Stand-alone Satellite 5x8 Multiswitch Diseqc 2.0 Newest 2013
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

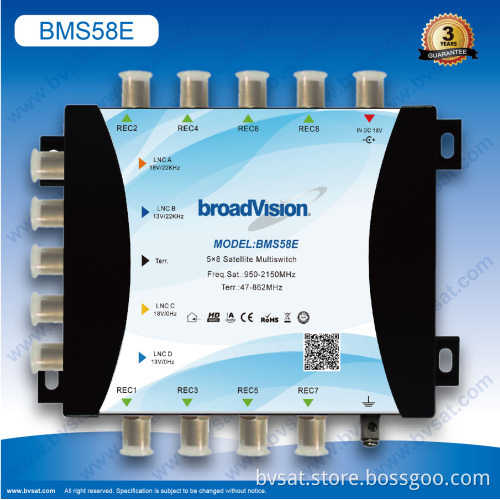

Product name: 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013
Model NO.
Features of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
Detail photo of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
Specifications of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
Detail photo of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
Package information of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
Package and shipping show:
Our factory:
Production:
Q&A:
R&D:
Testing:
Our team:
Our services:
Competitive price, fast delivery, best service, always do more than you can image!
Choose us, make you a better life!
Model NO.
Features of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
1. 4 satellite IF+ 1 terrestrial TV inputs versions for 8 subscribers outputs;
2. Stand-alone series;
3. High output return loss ports specifically designed for MDU networks and multiplesubscriber applications reduce;
4. Microreflections, improves data recovery and lowers harmonic distortions;
5. Simple F-type connector interface design provides satellite and antenna signals to be routed to 8 outputs.
Detail photo of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
Specifications of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS58E |
|
Description |
Stand-alone5x8 multiswitch |
|
Inputs/Outputs |
4 SAT+1Terr./ 8 Receiver
|
|
Frequency Range |
Terr.:47~862MHz SAT:950~2150MHz |
|
Switchingcommands |
13V 18V |
|
SwitchingVoltage |
V:10-15.2V H:15.2-20V |
|
PowerSupply |
IN:100~240V OUT:18V 1200mA |
|
Dimensions(L,W,H) |
180×125×43mm |
|
Max.Current Pass to LNB
|
1000 mA |
|
InsertionLoss(SAT) |
4dB |
6dB |
InsertionLoss(Terr.) |
0dB |
2dB |
ReturnLoss(SAT) |
12dB |
10dB |
ReturnLoss(Terr.) |
12dB |
10dB |
Stop bandattenuation(SAT) |
25dB |
20dB |
Stop bandattenuation(Terr.) |
25dB |
20dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
30dB |
25dB |
Detail photo of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
Package information of 5 in 8 out Stand-alone Satellite 5x8 multiswitch DiSEqC 2.0 newest 2013:
| Model | White box( LxWxH cm) | Carton(LxWxH cm) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS58E | 28.5*13*6 | 54*30.5*33 | 7.6 | 20 | 9 | 0.055 |
Package and shipping show:
Our factory:
Production:
Q&A:
R&D:
Testing:
Our team:
Our services:
Competitive price, fast delivery, best service, always do more than you can image!
Choose us, make you a better life!
