Product name: Factory direct Cascadable 5x5x4 Satellite lnb multi switch with quality warranty
Features of Factory direct Cascadable 5x5x4 Satellite lnb multi switch with quality warranty:
Product show:
Sepcifications of Factory direct Cascadable 5x5x4 Satellite lnb multi switch with quality warranty:
Package photo:
Package information of Factory direct Cascadable 5x5x4 Satellite lnb multi switch with quality warranty:
Production line show:
Q&A:
R&D:
Test:
Our factory in Zhongshan city:
Our company sales team in Shenzhen city:
Our services:
You may also like these following hot selling items:
Satellite 3 in zinc die casting multiswitch BMS34C
Satellite multiswitch 2 in series 12 outputs BMS212B
Features of Factory direct Cascadable 5x5x4 Satellite lnb multi switch with quality warranty:
1. 4 satellite IF+1 terrestrial TV inputs versions for 4 subscribers outputs cascadable satellite multiswitch
2. Sheet metal housing with plastic holder
3. Passive gain circuit via terrestrial input
4. Low cascading loss at high subscriber extensions
5. Low power consumption thanks to new generation compenents
6. Ideal for middle and large SMATV systems

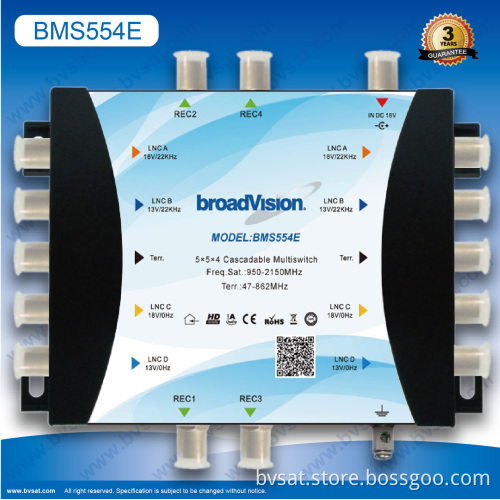

Product show:
Sepcifications of Factory direct Cascadable 5x5x4 Satellite lnb multi switch with quality warranty:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS554E |
|
Description |
Cascadeable 5x5x4 multiswitch |
|
Inputs/Outputs |
4 SAT+1 Terr./ 4 Receiver
|
|
Frequency Range |
Terr.:47~862MHz SAT:950~2150MHz |
|
Switching commands |
13V 18V |
|
Power Adapter |
IN:100~240V OUT:18V 1200mA |
|
Dimensions (L,W,H) |
180×125×43 mm |
|
Max. Current Pass to LNB |
1200 mA |
|
Thru Loss(Terr.) |
3dB |
4dB |
Thru Loss(SAT) |
3dB |
4dB |
Tap Loss(Terr.) |
4dB |
6dB |
Tap Loss(SAT) |
0dB |
2dB |
Return Loss(Terr.) |
12dB |
10dB |
Return Loss(SAT) |
12dB |
10dB |
Stop band attenuation(Terr.) |
28dB |
25dB |
Stop band attenuation(SAT) |
28dB |
25dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
30dB |
25dB |
Package photo:
Package information of Factory direct Cascadable 5x5x4 Satellite lnb multi switch with quality warranty:
| Model | White box(LxWxH cm) | Carton(LxWxH cm) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS554E | 26.5*13*6 | 54*30.5*33 | 7.7 | 20 | 9.2 | 0.055 |
