Cheap Satellite Channels 5 Way 28 Outputs Multiswitch
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Product name: Cheap satellite channels 5 way 28 outputs multiswitch
Features of 5 x 28 multiswitch:
Specification of 5 x 28 multiswitch:
Package:
Packing detail:
Production:
Q & A:
Test:
Factory:
Company:
Other products you may like:
5 x 5 x 4 multiswitch(BMS554E)
5 x 5 x 16 multiswitch(BMS5516E)
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
Features of 5 x 28 multiswitch:
1. 5 in stand-alone series satellite multiswitch
2. Built-in amplifiers
3. Easy installation
4. With CE & RoHs certification
5. Factory competitive price
6. Free sample provided

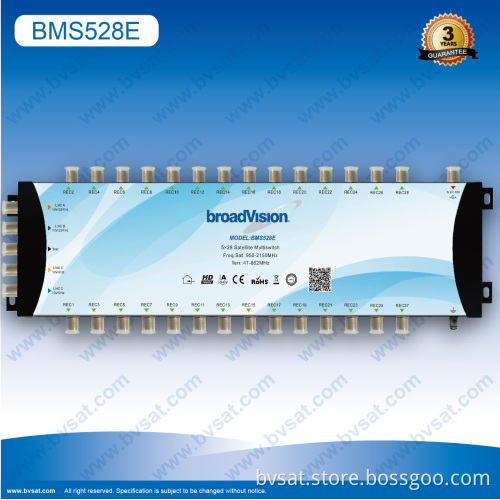

Photos show:
Photos show:
Specification of 5 x 28 multiswitch:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS528E |
|
Description |
Stand-alone5x28 multiswitch |
|
Inputs/Outputs |
4 SAT+1Terr./ 28 Receiver |
|
Frequency Range |
Terr.:47~862MHz SAT:950~2150MHz |
|
Switchingcommands |
13V 18V |
|
SwitchingVoltage |
V:10-15.2V H:15.2-20V |
|
PowerSupply |
IN:100~240V OUT:18V 1200mA |
|
Dimensions(L,W,H) |
390×125×43mm |
|
Max.Current Pass to LNB
|
1000 mA |
|
InsertionLoss(SAT) |
5dB |
7dB |
InsertionLoss(Terr.) |
6dB |
8dB |
ReturnLoss(SAT) |
12dB |
10dB |
ReturnLoss(Terr.) |
12dB |
10dB |
Stop bandattenuation(SAT) |
25dB |
20dB |
Stop bandattenuation(Terr.) |
25dB |
20dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
30dB |
25dB |
Package:
Packing detail:
| Model | White box(L*W*H)(CM) | Carton(L*W*H)(CM) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS528E | 49*13*6 | 51*28*33 | 9.2 | 10 | 12.8 | 0.047 |
Production:
Q & A:
Test:
Factory:
Company:
Other products you may like:
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
