China Supply Satellite Distribution Lnb Receiver 5 X 16 Multiswitch With Power Supply

Description of China supply satellite distribution lnb receiver 5 x 16 multiswitch with power supply

Features of 5 x 16 multiswitch:


Specification of 5 x 16 multiswitch:

Technical Datasheet
Item	Typical	QC Limit

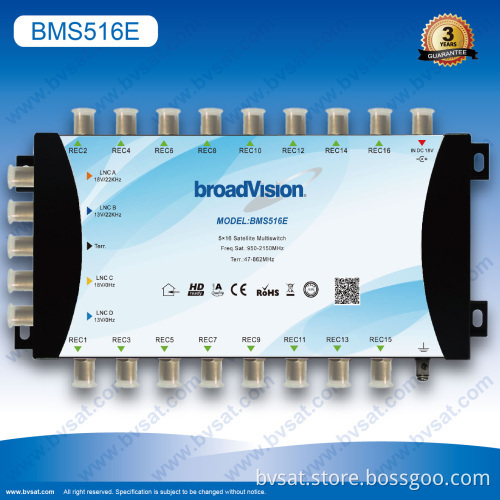

Model NO.	BMS516E
Description	Stand-alone5x16 multiswitch
Inputs/Outputs	4 SAT+1Terr./ 16 Receiver
Frequency Range	Terr.:47~862MHz  SAT:950~2150MHz
Switchingcommands	13V             18V
SwitchingVoltage	V:10-15.2V         H:15.2-20V
PowerSupply	IN:100~240V      OUT:18V 1200mA
Dimensions(L,W,H)	280×125×43mm
Max.Current Pass to LNB	1000 mA
InsertionLoss(SAT)	3dB	5dB
InsertionLoss(Terr.)	1dB	3dB
ReturnLoss(SAT)	12dB	10dB
ReturnLoss(Terr.)	12dB	10dB
Stop bandattenuation(SAT)	25dB	20dB
Stop bandattenuation(Terr.)	25dB	20dB
Isolation(H/V)	30dB	25dB
Isolation(REC-REC)	30dB	25dB

Production:


R & D:


Test:


Application test:


Package:


Packing detail:

Model	White box(L*W*H)(CM)	Carton(L*W*H)(CM)	N.W(KGS)	QTY/CTN	G.W(KGS)	CBM/CTN
BMS516E	38.5*13*6	40.5*28*33	6.5	10	9.4	0.037

Factory:


Vision:


Other products you may like:

                                                            5 x 5 x 32 multisiwtch(BMS5532E)

                                               5 x 8 multiswitch(BMS58E)

                                                           5 x 32 multiswitch(BMS532E)

About shipment:

1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.

About package:

1. Inner package: White box.
2. Outer package: Standard export carton.

About payment:

T/T,L/C and Western Union are acceptable.

Note:

1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.


Promise:

1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.

Thanks for browsing.
