Satellite Antenna Tv For Hd Receiver Of 5 X 4 Stand-alone Multiswitch
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Description ofSatellite antenna tv for hd receiver of 5 x 4 stand-alone multiswitch
Features of 5 x 4 stand-alone multiswitch:
Specification of 5 x 4 stand-alone multisiwtch:
Other products you may interested in:
5 x 8 stand-alone multisiwtch(BMS58E)
5 x 12 stand-alone multiswitch(BMS512E)
5 x 5 x 4 cascadable multisiwtch(BMS554E)
5 x 5 x 8 cascadable multiswitch(BMS558E)
Production:
Q & A:
Test:
Package:
Packing detail:
Factory:
Vision:
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
Features of 5 x 4 stand-alone multiswitch:
1. 5 input simple interface design provides 4 satellite polarity inputs plus 1 off air antenna and 4 outputs, for quick installation
2. Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
3. Excellent quality component, professional amplification design and low loss
4. An external 20V\700mA DC power offering more stable operation
5. Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously

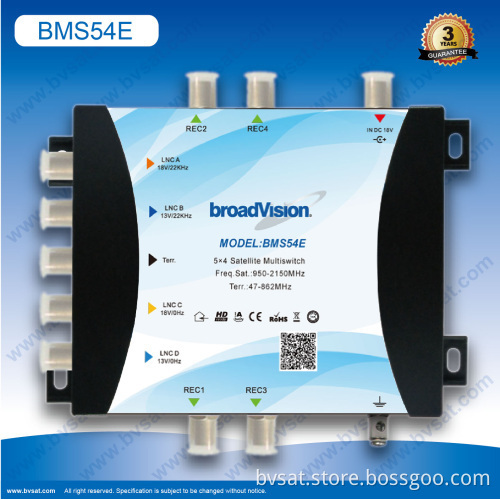

Photo show of 5 x 4 stand-alone multiswitch:
Photo show of 5 x 4 stand-alone multiswitch:
Specification of 5 x 4 stand-alone multisiwtch:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS54E |
|
Description |
Stand-alone5x4 multiswitch |
|
Inputs/Outputs |
4 SAT+1Terr./ 4 Receiver |
|
Frequency Range |
Terr.:47~862MHz SAT:950~2150MHz |
|
Switchingcommands |
13V 18V |
|
SwitchingVoltage |
V:10-15.2V H:15.2-20V |
|
PowerSupply |
IN:100~240V OUT:18V 1200mA |
|
Dimensions(L,W,H) |
180×125×43mm |
|
Max.Current Pass to LNB
|
1000 mA |
|
InsertionLoss(SAT) |
4dB |
6dB |
InsertionLoss(Terr.) |
0dB |
2dB |
ReturnLoss(SAT) |
12dB |
10dB |
ReturnLoss(Terr.) |
12dB |
10dB |
Stop bandattenuation(SAT) |
25dB |
20dB |
Stop bandattenuation(Terr.) |
25dB |
20dB |
Isolation(H/V) |
30dB |
25dB |
Other products you may interested in:
5 x 8 stand-alone multisiwtch(BMS58E)
5 x 5 x 4 cascadable multisiwtch(BMS554E)
5 x 5 x 8 cascadable multiswitch(BMS558E)
Production:
Q & A:
Test:
Package:
Packing detail:
| Model | White box(L*W*H)(CM) | Carton(L*W*H)(CM) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS54E | 25.8*13*6 | 54*30.5*33 | 7.4 | 20 | 8.7 | 0.055 |
Factory:
Vision:
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
