Factory Supply Dish Internet Satellite Tv Cascadable Multiswitch 5 In 24 Out

Description ofFactory supply dish internet satellite tv cascadable multiswitch 5 in 24 out

Keywords: cascadable multiswitch. satellite TV. SMTV system.

Features of 5 x 5 x 24 cascadable multiswitch:

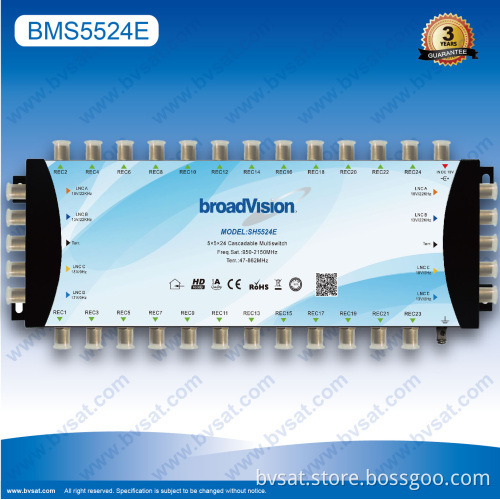

Photo of 5 x 5 x 24 cascadable multiswitch:


Specificaiton of 5 x 5 x 24 cascadable multiswitch:

Technical Datasheet
Item	Typical	QC Limit
Model NO.	BMS5524E
Description	Cascadeable5x5x24 multiswitch
Inputs/Outputs	4 SAT+1Terr./ 24 Receiver
Frequency Range	Terr.:47~862MHz    SAT:950~2150MHz
Switchingcommands	13V              18V
Power Adapter	IN:100~240V        OUT:18V 1200mA
Dimensions(L,W,H)	310×125×43mm
Max.Current Pass to LNB	1200 mA
Thru Loss(Terr.)	4dB	5dB
Thru Loss(SAT)	4dB	5dB
Tap Loss(Terr.)	5dB	7dB
Tap Loss(SAT)	4dB	6dB
ReturnLoss(Terr.)	12dB	10dB
ReturnLoss(SAT)	12dB	10dB
Stop bandattenuation(Terr.)	28dB	25dB
Stop bandattenuation(SAT)	28dB	25dB
Isolation(H/V)	30dB	25dB

Production:


Q & A:


R & D:


Test:


Application test:


Factory:


Package:


Package detail:

Model	White box(L*W *H)(CM)	Carton(L*W*H)(CM)	N.W(KGS)	QTY/CTN	G.W(KGS)	CBM/CTN
BMS5524E	41*13*6	43*28*33	7.7	10	10.8	0.04

Our team:


Vision:


Other products you may like:


                                         5 x 5 x 28 cascadable multiswitch(BMS5528E)


                                                             5 x 5 x 32 cascadable multiswitch(BMS5532E)

About shipment:

1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.

About package:

1. Inner package: White box.
2. Outer package: Standard export carton.

About payment:

T/T,L/C and Western Union are acceptable.

Note:

1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.


Promise:

1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
