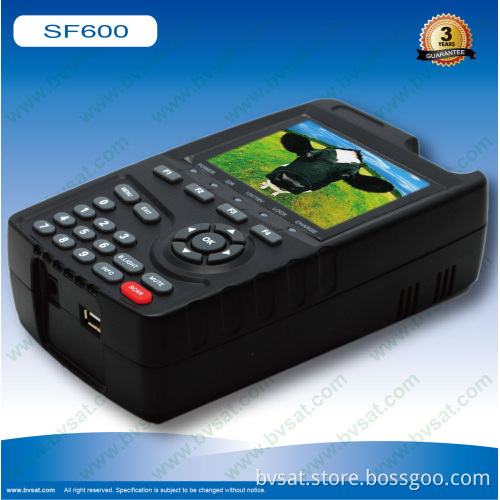

Product name: good price 3.5 inch LCD DVB-S FTA Data Satellite Signal Finder Meter

Description:

SF600 allows installers to quickly setup satellite dishes and LNBs. With the built-in satellite tuner, the user can view specific FTA channels and assess their quality. This enables user to select and verify the equipment. Its A/V input allows connecting CCTV cameras, making the device a very useful tool for installers of video surveillance systems. The installer can precisely set the focal length and focus of each camera.

Key feature:

DVB-S compliant satellite finder

3.5 inch TFT LCD screen with big fonts

Play FTA channels

BER, signal strength and signal quality indication

Numerical reading and bar reading for signal strength and quality
AV in and AV out function

Blind scan function

Sound and light alarm for lock signal

13V/18V for polarization selection, maximum 350mA current capability

Support 22K switch

Support DiSEqC v1.0, v1.2 and USALS

Upgrade S/W by USB flash disk

Fast charge Li-ion battery, 4 hours continuous operation

Application operation display details of3.5 inch LCD DVB-S FTA Data Satellite Signal Finder Meter
good price 3.5 inch LCD DVB-S FTA Data Satellite Signal Finder Meter

Specifcation:

System Capabilities	Fully DVB-SCompliant	Yes
LNB input	Connector	F type, Female
	Frequency Range	950MHz ~ 2150MHz
	Signal Level	-65dBm ~ -25dBm
	LNB Power	13/18V, Max 350mA
	LNB Switch Control	22KHz
	DiSEqC	Ver 1.0/ 1.2, USALS
Demodulator	Front end	QPSK
	Demodulation Range	2Mbps ~ 45Mbps
	SCPC and MCPC Capable	Yes
System Resources	Processor	32bit processor (133MHz)
	FLASH	8Mbyte
	SDRAM	4x16Mbyte
Video Decoder	MPEG 2	MP@ML
	Data Rate	Max15M bits/s
	Resolution	720x576,720x480
	Video format	PAL/NTSC/SECAM
Audio	MPEG 1	Layer 1&2
	Type	Mono
	Sampling Rate	32, 44.1 & 48KHz
Data Transfer	Connector	USB
Power Supply	LI-ION battery	3000 mAH/8.4VMax
Power Supply	Power Adaptor	AC 100 ~ 220V
Physical characteristics	Size	155x95x45mm
Physical characteristics	Net Weight	0.5Kg

More photos of 3.5 inch LCD DVB-S FTA Data Satellite Signal Finder Meter
good price 3.5 inch LCD DVB-S FTA Data Satellite Signal Finder Meter

Front panel:
good price 3.5 inch LCD DVB-S FTA Data Satellite Signal Finder Meter

NO.	Name	Function
1	Signal input	dish
2	LCD	Show menu and TV
3	Signal locklight	Light whensignal is locked
4	light indicator	Light will offwhen full
5	Power indicator	When open,thelight shows
6	22K switch	22K light shows
7	13/18Vindicator	Horizon/Vertical
8	F1 F2 F3 F4	Function key
9	OK	Confirm
10	MENU	Show main menuor back
11	EXIT	Exit
12	0-9	Input numberdata
13	Power connector	Power connector
14	B.Light	LCD on/ off
15	Mute	Open or off
16	USB	Update
17	M.INFO	More channelsshows
18	INFO	Show channeldata
19	Power On/off	Power On/off
20	AV output	AV output
21	AV input	AV input

Install Application diagram
good price 3.5 inch LCD DVB-S FTA Data Satellite Signal Finder Meter

Accessory Contents:

1 x Satellite Finder
1 x Power Charger
1 x Car Charger
1 x AV Cable
1 x USB cable
1 x Bag
1 x English User Manual
