Best-selling Satellite 2 X 2 X 6 Cascadable Multiswitch For Directv

Product name: Best-selling satellite 2 x 2 x 6 cascadable multiswitch for directv

Keywords: satellite multiswitch, cascaable multi switch, LNB switch.

Product features:



Product specifications:

Technical Datasheet
Item	Typical	QC Limit

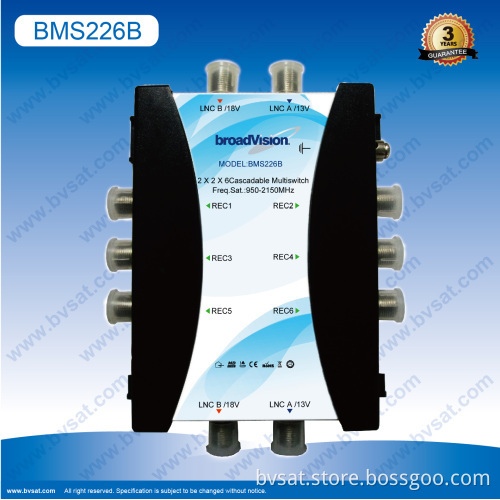

Model NO.	BMS226B
Description	Cascadeable2x2x6 multiswitch
Inputs/Outputs	2 in/6 out
Frequency Range	950-2150MHz
Switchingcommands	13V             18V
SwitchingVoltage	V:10-14.5V      H:15.5-20V
Power supply	Powersupplied from Receiver
Impedanceinput/output	75Ω
Dimensions(L,W,H)	138×108×43mm
SupplyVoltage	20DC(±1)700mA
DC MaxPower Passing	500 mA
Thru Loss	2dB	3dB
Tap Loss	0dB	2dB
ReturnLoss	12dB	10dB
Isolation(H/V)	30dB	25dB
Isolation(REC-REC	35dB	30dB

Other same type products provided:


                                                                          2 x 2 x 4 cascadable multiswitch


                                                                    Cascadable 2 x 2 x 8 satellite multiswitch

Production show:



Package show:


Package detail:

Model	White box (L x W x H) (cm)	Carton (L x W x H) (cm)	N.W (KGS)	QTY/CTN	G.W(KGS)	CBM/CTN
BMS226B	15*12.5*4.6	64.5*32*26	10.9	50	15.3	0.054

Q & A show:



Test show:



Application test show:



R & A show:



Our factory show:



Our team:



Our Vision:



About shipment:

1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.

About package:

1. Inner package: White box.
2. Outer package: Standard export carton.

About payment:

T/T,L/C and Western Union are acceptable.

Note:

1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.


Promise:

1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.

Thanks for browsing.
