47-2150 Mhz Free Satellite Tv Multi Switch 9in 8out For Quattro Lnb

47-2150 Mhz Free Satellite Tv Multi Switch 9in 8out For Quattro Lnb

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

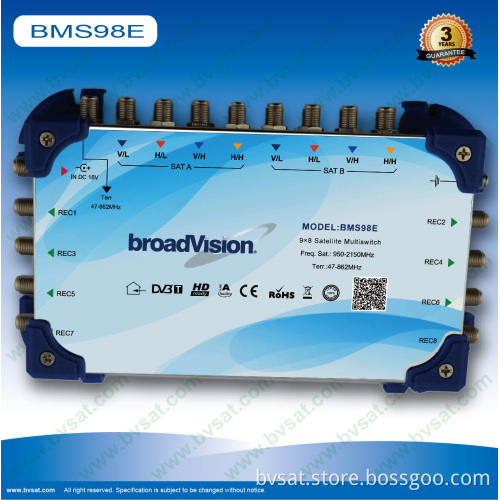

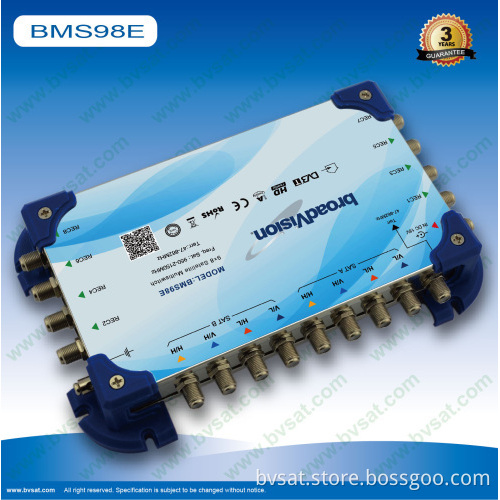

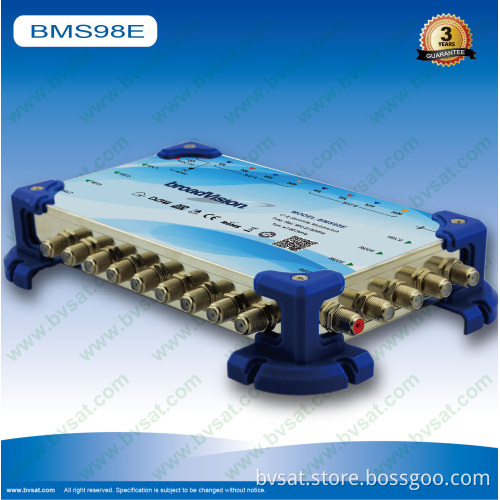

Products name: 47-2150 MHz free satellite TV multi switch 9in 8out for Quattro LNB

Key feature:

for distribution of 8 SAT-IF-Polarisations and terrestrial signal multiswitch 9in 8out.

4, 6 or 8 subscribers / receiver outputs.

DiSEqC 2.0 and downwardly compatible tone burst capable.

high isolation between polarisations by using multilayer technique

SAT active and terrestrial passive - terrestrial active option possible

LNC remote current consumption by power supply

Specifications:

Item		Typical	QC Limit	Remark
Frequency Range		Terr.:47~862MHzSAT:950~2150MHz
Inputs		8 SAT+1 Terr.		F connectors
Outputs		8 Receiver		F connectors
InsertionLoss	Terr.	5dB	7dB
	SAT	2dB	4dB
ReturnLoss	Terr.	12dB	10dB
	SAT	12dB	10dB
Stopband attenuation	Terr.	28dB	25dB
	SAT	28dB	25dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Power Adapter		IN:100~240V OUT:18V 1600mA
Dimensions (L,W,H)		222×141×42		mm

Configuration with 22 KHz generator:

The multiswitch is equipped with two integrated insertable 22 kHz generators. You can connect the generator to the Highband-inputs of SAT-system A with a switch on the top of the multiswitch. Connecting the other generator to the Highband-inputs of SAT-system B you can use the second lower switch. This function is needed by some LNC to turn into the Highband.

The production process of 47-2150 MHz free satellite TV multi switch 9in 8out for Quattro LNB
1. PCB SMT

2. Metal housing:

3. Assemble:
47-2150 MHz free satellite TV multi switch 9in 8out for Quattro LNB

4. Testing by Advanced machine:
47-2150 MHz free satellite TV multi switch 9in 8out for Quattro LNB

Customer policy:

At Broadvision, we offer our customers the ability to ship via professional freighter, Next Business Day, and Second Day. Shipping rates are simply calculated based on the total weight of the items in your order and that total shipping amount is incorporated into our shopping cart application. We see this as an advantage to our customers because our shopping cart reflects a "total cost of order" while shopping. Saturday delivery is available in some areas.

Sample delivery:

We always ship the samples to our customer as soon as possible.
We always send the satellite multiswitch samples to our distinguished customer free of charge.
We always find the cheap but safety shipping solution for our customer.

47-2150 MHz free satellite TV multi switch 9in 8out for Quattro LNB

The 2x6 satellite multiswitch, 2x8 satellite multiswitch, 3x6 satellite multiswitch, 3x8 satellite multiswitch will be delivered to our Russian customer.

Marketing strategy:
We take part in the exhibition at Singapore, Dubai, Hongkong, Angacable, B&C.
47-2150 MHz free satellite TV multi switch 9in 8out for Quattro LNB

Shipping & packing:

Model	White box( LxWxH cm)	Carton(LxWxH cm)	N.W(KGS)	QTY/CTN	G.W(KGS)	CBM/CTN
BMS98E	32156	342233	6.4	10	8.8	0.036

1. inner white package.
2. outer carton.

47-2150 MHz free satellite TV multi switch 9in 8out for Quattro LNB

Notice:

Locate the multiswitch indoors. Do not expose it to rain and direct solar radiation. Fix it to the wall by using suitable screws.

• Ensure a free space of 20 cm (7.8 inch) on each side of the unit, upwards a clearance at least 50 cm (19.7 inch).

• Choose an installation place where there is a possibility in case of emergency to get to mains plug and remove it out of the outlet.

SAFETY

• Do not open the multiswitch; otherwise there is a shock hazard.

• Be sure with sufficient earthing of the aerials and aerial feeds.
