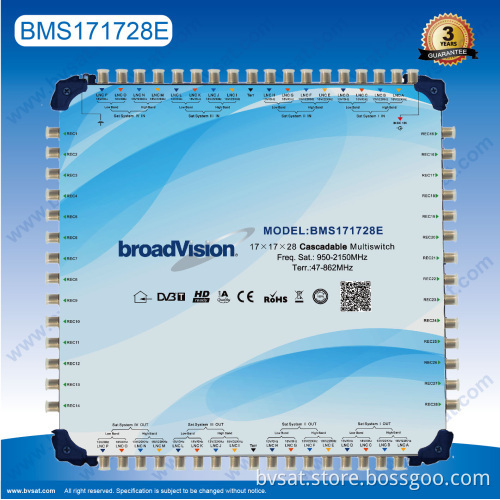

 Product name: Multi-family housingfour satellite TV distributioncascade multiswitch BMS171728E



Broadvision understands the challenges and expectations of your commercial video business.
Whether it's Fiber To The Home, Curb or Node, your customers demand quality of service. From
our time-tested rack mount equipment to our new, easy to deploy cascade Series, Broadvision has
the best solution for you. Broadvision satellite IF distribution systems have been deployed in the following
architectures as well as many others. Imagine the possibilities!

The application diagram of BMS171728E cascade multiswitchlike the following:




Key feature ofBMS171728E cascade multiswitch:



16 satellite IF and 1 terrestrial TV inputsfor 28 satellite receiver.
16 satellite IF inputs selected by 13V\18V\22KHz and DisEqC 2.0 signal.
Low insertion loss, high isolation and return loss.
SAT-IF-PATHs to the subscribers are active and supplied by the receiver.
Sheet metal housing with plastic holder.
Design good for indoor usage.
Easy to Deploy.

Specifications:

Item		Typical	QC Limit	Remark
Frequency Range		Terr.:47~862MHz SAT:950~2150MHz
Inputs		16 SAT+1 Terr.		F connectors
Outputs		28 Receiver		F connectors
Thru Loss	Terr.	4dB	5dB
	SAT	4dB	5dB
TAP Loss	Terr.	6dB	8dB
	SAT	6dB	8dB
Return Loss	Terr.	12dB	10dB
	SAT	12dB	10dB
Stop band attenuation	Terr.	28dB	25dB
	SAT	28dB	25dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Power Adapter		IN:100~240V OUT:18V 2000mA
Dimensions (L,W,H)		362×352×42		mm
