Satellite Tv Signal Switching Systems 17in 16out Stand-alone Multiswitch
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Product name: Satellite TV signal switching systems 17in 16outstand-alone multiswitch.

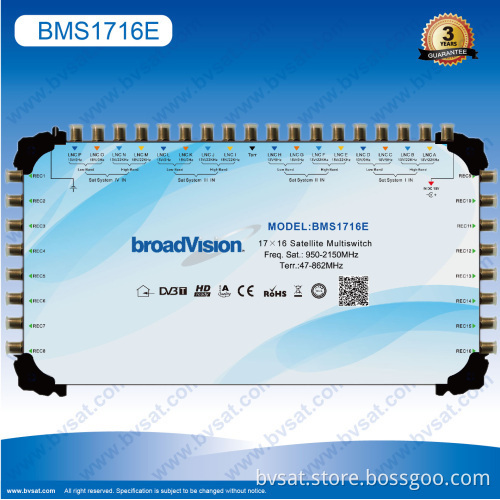

The BMS1716E stand alone multiswitch is designed for 16 subscribers to pick up 4 satelite TV plus 1 terrestrial TV.
Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient.
Key feature:
Application of BMS1716E stand alone multiswitch:
Installation notice of BMS1716E stand-alone multiswitch:
1. connectRG6 coaxial cable from Quad or Quottro LNB.
2. It is better install BMS1717Etrunk amplifier to amplify the signal to compensate the signal loss.
3. goodgrounding with earth.
4. Ideal SMATV system for hotel, big apartment, school,multi dewelling unit etc.
5. The length of coaxial cable connecting cascademultiswtich outputis less than 200 meters.
6. Be sure with sufficientearthing of the aerials and aerial feeds.
7.Do not open the multiswitch; otherwise there is a shockhazard.
The product process of Satellite TV signal switching systems 17in 16outstand-alone multiswitch
Application area:
1. hotel.
2. School.
3. Apartment.
4. Multi Dewellingcommunity.
The testing data of Satellite TV signal switching systems 17in 16outstand-alone multiswitch
SAT ReturnLoss:
SAT TAPLoss:
SAT Isolation:
TV TrunkLoss
TV ReturnLoss:
TV TAP GAIN:
OUTPUT-OUTPUTISOLATION:
If you couldn't enjoy more TV programs, switch to satellite. It is obviousSatellite TV holds a great advantage over the cable TV companies. Not only isthe picture and sound quality superior, but there's more choice in what towatch.The differences couldn't be more obvious.
The BMS1716E stand alone multiswitch is designed for 16 subscribers to pick up 4 satelite TV plus 1 terrestrial TV.
Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient.
Excellent quality component, professional amplification design and low loss.
13/18V 0/22KHz DiSEqC 2.0 supplied by satellite receiver through coaxial cable to switch corresponding port.
Capable of connecting sixteen SATV signals, one terrestrial TV signals simultaneously.
Supports multi-satellite multi-receiver and for last stage usage.Sixteen SATV signals switched through 13/18V 0/22KHz DiSEqC 2.0 from satellite receiver.
Distributed into 16 subscribers to use simultaneously and no mutual interference.
Key feature:
1. Suitable for multi-satellite and multi-user system
2. 16 satellite inputs, 1 terrestrial input
3. 16 subscriber outputs, end type available
4. Low cascading loss and high isolation
5. Built in Amplifiers circuit to compensate cable loss
6. SAT IF selected by 13/18V, 22 KHz and DiSEqC2.0 commands
7. Professional design, exquisite appearance and convenient installation
Specification:
Specification:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
SH1716E |
|
Description |
Stand-alone 17 x 16 multiswitch |
|
Inputs/Outputs |
17 in/16 out |
|
Frequency Range |
Terr.:47~862MHz(ODM:5-862)SAT:950~2150MHz |
|
Powersupply |
90-260 Vac/ 47-63 Hz |
|
PowerAdapter |
IN:100~240V OUT:18V 2000mA |
|
Max.Current Pass to LNB |
1000 mA |
|
Dimensions(L,W,H) |
362×208×42 mm |
|
Insertion Loss(Terr.) |
5dB |
7dB |
Insertion Loss(SAT) |
3dB |
5dB |
Return Loss(Terr.) |
12dB |
10dB |
Return Loss(SAT) |
12dB |
10dB |
Stop band attenuation(Terr.) |
28dB |
25dB |
Stop band attenuation(SAT) |
28dB |
25dB |
Isolation(H/V) |
28dB |
25dB |
Isolation REC-REC) |
30dB |
28dB |
Application of BMS1716E stand alone multiswitch:
Installation notice of BMS1716E stand-alone multiswitch:
1. connectRG6 coaxial cable from Quad or Quottro LNB.
2. It is better install BMS1717Etrunk amplifier to amplify the signal to compensate the signal loss.
3. goodgrounding with earth.
4. Ideal SMATV system for hotel, big apartment, school,multi dewelling unit etc.
5. The length of coaxial cable connecting cascademultiswtich outputis less than 200 meters.
6. Be sure with sufficientearthing of the aerials and aerial feeds.
7.Do not open the multiswitch; otherwise there is a shockhazard.
Shipping & package terms:
1. we always ship the samplesto our customer as soon as possible.
2. we always send the samples to ourdistinguished customer free of charge.
3. we always find the cheap but safetyshipping solution for our customer.
4. inner white carton with outer cartonpackage.
5. packing datasheet:
1. we always ship the samplesto our customer as soon as possible.
2. we always send the samples to ourdistinguished customer free of charge.
3. we always find the cheap but safetyshipping solution for our customer.
4. inner white carton with outer cartonpackage.
5. packing datasheet:
| Model | White box L×W×H ( CM) | Carton L×W×H (CM ) |
N.W(KGS) | QTY/CTN | G.W (KGS) | CBM/CTN |
| BMS178E | 46*14*6 | 48*30*33 | 10.5 | 10 | 13.2 | 0.048 |
| BMS1712E | 46*21*6 | 48*44*33 | 14.3 | 10 | 18.2 | 0.07 |
| BMS1716E | 46*21*6 | 48*44*33 | 14.5 | 10 | 18.3 | 0.07 |
| BMS1720E | 46*28.5*6 | 48*30.5*33 | 10.6 | 5 | 11.7 | 0.048 |
| BMS1724E | 46*28.5*6 | 48*30.5*33 | 10.7 | 5 | 11.8 | 0.048 |
| BMS171728E | 46*35.5*6 | 48*37.5*33 | 12.1 | 5 | 12.8 | 0.06 |
| BMS1732E | 46*35.5*6 | 48*37.5*33 | 12.2 | 5 | 13 | 0.06 |
The product process of Satellite TV signal switching systems 17in 16outstand-alone multiswitch
Application area:
1. hotel.
2. School.
3. Apartment.
4. Multi Dewellingcommunity.
The testing data of Satellite TV signal switching systems 17in 16outstand-alone multiswitch
SAT ReturnLoss:
SAT TAPLoss:
SAT Isolation:
TV TrunkLoss
TV ReturnLoss:
TV TAP GAIN:
OUTPUT-OUTPUTISOLATION:
If you couldn't enjoy more TV programs, switch to satellite. It is obviousSatellite TV holds a great advantage over the cable TV companies. Not only isthe picture and sound quality superior, but there's more choice in what towatch.The differences couldn't be more obvious.
The television didn't run non-stop. There was less bickering over the videogame. Best of all, they all grew up to be avid readers. Modern televisions willreceive very well with a suitable SMATV Mulitswitch. With it, one was able topick up more channels in crystal clear high definition. It's a one-time expense!What more do you need, other than to simply turn it off more often?
Now a new kind of BMS1716E Mulitswitch has been launched on BVSAT.com
