Compact 2in 4out Stand-alone Multiswitch For 2 Satellite Tv With 4 Users

 Product name: compact2in 4out stand-alone multiswitch for 2 satellite TV with 4 users



The BMS24B stand-alone multiswitch is designed for distributing of2 satellite TV to 4 users. It apply in small house and Villa.It must be installed easily. With the energy save technology, it have SAT-IF-PATHs to the subscribers are active and supplied by the receiver. It must use indoor only.

Key Feature:

2 satellite IF inputs for 4 satellite receiver

2 satellite IF inputs selected by 13V\18V signal

Low insertion loss, high isolation and return loss

SAT-IF-PATHs to the subscribers are active and supplied by the receiver

Built in Amplifiers

Sheet metal housing with plastic holder

Design good for indoor usage

Specification of compact 2in 4out stand-alone multiswitch

Frequency Range		SAT:950~2150MHz
Inputs		2 SAT
outputs		4 Receiver
Insertion Loss		0dB	2dB
Return Loss		12dB	10dB
Isolation	H/V	30dB	25dB
	REC-REC	35dB	30dB
Switching commands		13V                        18V
Switching Voltage		V:10~14.5V      H:15.5~20V
Power supply		Power supplied from Receiver
Impedance input/output		75Ω
Dimensions (L,W,H)		128×108×43

The application diagram ofcompact 2in 4out stand-alone multiswitch

Notice:
1. connectRG6 coaxial cable from Quad or Quottro LNB.
2. It is better install BMS99E 9 way trunk amplifier to amplify the signal to compensate the signal loss.
3. goodgrounding with earth.
4. Ideal SMATV system for hotel, big apartment, school,multi dewelling unit etc.
5. The length of coaxial cable connecting cascademultiswtich outputis less than 200 meters.
6. Be sure with sufficientearthing of the aerials and aerial feeds.
7. Do not open the multiswitch; otherwise there is a shockhazard


The other 2in stand alone multiswitch with metal housing:

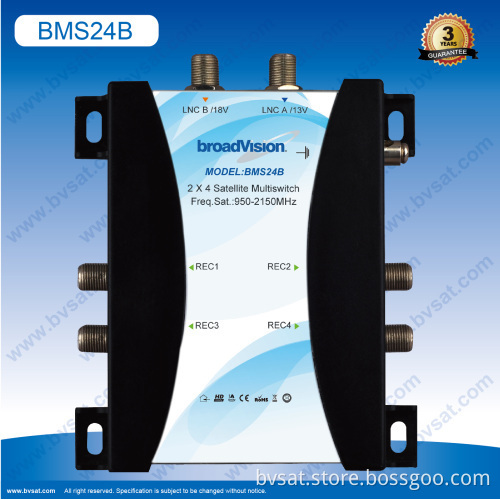

The production of BMS24B stand-alone multiswitch :
