Best Selling Zinc Die 3x4 Multiswitch Directv With 2 Sat 1 Terr Inputs
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

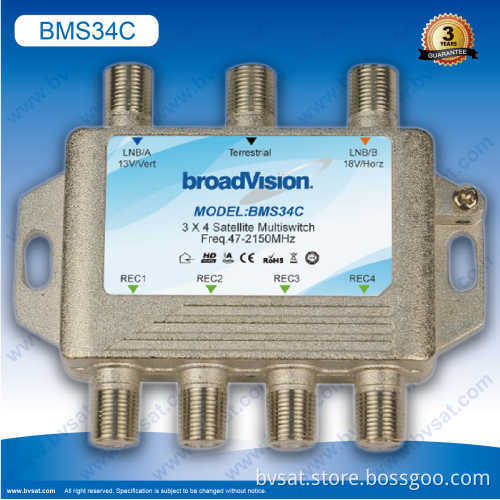

Product name: Best selling zinc die 3x4 multiswitch directv with 2 Sat 1 Terr inputs
Model NO.:
Specifications of Best selling zinc die 3x4 multiswitch directv with 2 Sat 1 Terr inputs:
Detail photos of Best selling zinc die 3x4 multiswitch directv with 2 Sat 1 Terr inputs:
Features of Best selling zinc die 3x4 multiswitch directv with 2 Sat 1 Terr inputs:
The application diagram of zinc die 3x4 multiswitch
Installation Notice:
Package and shipping show:
Package information of Best selling zinc die 3x4 multiswitch directv with 2 Sat 1 Terr inputs:
Production show:
Q & A:
R&D:
Test:
Our factory in Zhong Shan:
Our team in Shenzhen:
What can we do for you:
Just tell us what you need, we do more than you can image. Thanks.
Model NO.:
Specifications of Best selling zinc die 3x4 multiswitch directv with 2 Sat 1 Terr inputs:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS34C |
|
Description |
Stand-alone 3x4 multiswitch |
|
Inputs/Outputs |
2 SAT+1 Terr./ 4 Receiver
|
|
Frequency Range |
Terr.:47~862MHz SAT:950~2150MHz |
|
Switching commands |
13V 18V |
|
Switching Voltage |
V:10-15V H:16-20V |
|
Impedance input/output |
75Ω |
|
Dimensions (L,W,H) |
88×72×16 mm |
|
Supply Voltage |
20DC(±1)700mA |
|
DC Max Power Passing |
500 mA |
|
Insertion Loss(SAT) |
2dB |
4dB |
Insertion Loss(Terr.) |
10dB |
12dB |
Return Loss(SAT) |
12dB |
10dB |
Return Loss(Terr.) |
12dB |
10dB |
Stop band attenuation(SAT) |
25dB |
20dB |
Stop band attenuation(Terr.) |
25dB |
20dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
30dB |
25dB |
Detail photos of Best selling zinc die 3x4 multiswitch directv with 2 Sat 1 Terr inputs:
Features of Best selling zinc die 3x4 multiswitch directv with 2 Sat 1 Terr inputs:
1. DirecTV-approved multiswitch for connecting DirecTV satellite dish with up to 4 receivers
2. Expands DirecTV service to several TVs at once
3. Additional LNB input and antenna input for connecting cable and antenna feeds
4. No power supply needed, receives power from satellite receivers
5. High-quality die-cast case
The application diagram of zinc die 3x4 multiswitch
Installation Notice:
1.Take care not to make short-circuits when mounting the F-connectors on the cables.
2. Identify the down-lead cables from the LNB. Then interconnect the input marked 12V to the LNB output Vertical. Interconnect the input marked 18V to the LNB output Hori-zontal. In-terconnect the input marked 0kHz to the LNB output Low. Interconnect the input marked 22kHz to the LNB output High.
3. Before connecting the input and output coaxial cables, disconnect from the mains the mul-tiswitch as well as the receivers and TV sets.
4. In case of short-circuit of an antenna cable, electric power supply of the cable is automa-tically turned off and an alarm buzzer sounds (except in MS-0504 and MS-0508 models).Disconnect the multiswitch from the mains at least for 1 minute and remedy short-circuit of the connector.
5. Not connected outputs of the multiswitch should be terminated with 75Ω terminations.
6. Input signal levels may be levelled with the existing variable attenuators. This work requi-res an appropriate SAT-TV analyzer.
Package and shipping show:
Package information of Best selling zinc die 3x4 multiswitch directv with 2 Sat 1 Terr inputs:
| Model | White box(LxWxH cm) | Carton(LxWxH cm) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS34C | 9*7.3*1.8 | 33*23*20 | 8.9 | 100 | 10.8 | 0.015 |
Production show:
Q & A:
R&D:
Test:
Our factory in Zhong Shan:
Our team in Shenzhen:
What can we do for you:
Just tell us what you need, we do more than you can image. Thanks.
