Cascadable Satellite Diseqc 2.0 Multiswitch Of 5 In 32 Out For Smatv System

Product name: Cascadable Satellite DiSEqC 2.0 Multiswitch of 5 in 32 out for SMATV system

Model NO.



Features of Cascadable Satellite DiSEqC 2.0 Multiswitch of 5 in 32 out for SMATV system:

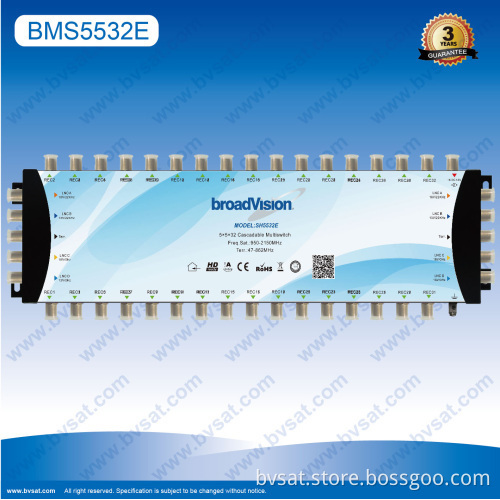

Detail photos of Cascadable Satellite DiSEqC 2.0 Multiswitch of 5 in 32 out for SMATV system:






Specifications of Cascadable Satellite DiSEqC 2.0 Multiswitch of 5 in 32 out for SMATV system:

Technical Datasheet
Item	Typical	QC Limit
Model NO.	BMS5532E
Description	Cascadeable 5x5x32 multiswitch
Inputs/Outputs	4 SAT+1 Terr./ 32 Receiver
Frequency Range	Terr.:47~862MHz     SAT:950~2150MHz
Switching commands	13V              18V
Power Adapter	IN:100~240V        OUT:18V 1200mA
Dimensions (L,W,H)	390×125×43 mm
Max. Current Pass to LNB	1200 mA
Thru Loss(Terr.)	4dB	5dB
Thru Loss(SAT)	4dB	5dB
Tap Loss(Terr.)	7dB	9dB
Tap Loss(SAT)	6dB	8dB
Return Loss(Terr.)	12dB	10dB
Return Loss(SAT)	12dB	10dB
Stop band attenuation(Terr.)	28dB	25dB
Stop band attenuation(SAT)	28dB	25dB
Isolation(H/V)	30dB	25dB
Isolation(REC-REC)	30dB	25dB

Packing photo:




Package information of Cascadable Satellite DiSEqC 2.0 Multiswitch of 5 in 32 out for SMATV system:

Model	White box(LxWxH cm)	Carton(LxWxH cm)	N.W(KGS)	QTY/CTN	G.W(KGS)	CBM/CTN
BMS5532E	49*13*6	51*28*33	9.5	10	13.2	0.047

Factory:



Production:


R&D:


Testing:





Tips:

A multiswitch allows you to feed many satellite TV receivers in various rooms with satellite TV signals from a QUATTRO LNB on your dish. In addition, if you wish, you can also feed aerial signals from a TV aerial.

The Application diagram of BMS5532E cascade multiswitch:

1. Twin LNB or Quottro LNB is available.
2. High Gain.
3. Good Isolation.
4. it is ideal product for big hotel satellite TV distribution system.
5. you can use it for multi-family TV reception.
