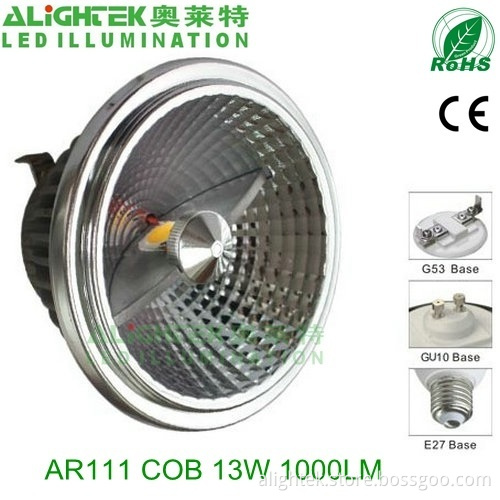

Features of Epistar 13W AR111 COB LED Spot Lamp G53/GU10/E27
-COB 2*6W LED as lighting source. No glare, no noise.
-Replaces 50W halogen AR111,80% energy saving.
-Low heat,no UV or IR light radiation
-Aluminium materialhousing with excellent heat conduction.
- Life span up to30,000hours, the LED efficiently protected by constant current power. .
- Original retrofit design
- Environmental protection, no mercury and hazardous substances.
- Widely used for indoor lighting, such as hotel, restaurant farm and home lighting, etc
Dimension of this AR111 spot light
Optics Parameter of 9W COB AR111 LED spot lamp G53
Temperature test records of lamp housing
Temperature test records of soldering point of led
Main Electrical Specification of COB 4W GU10 LED spot lamp
Packing detials of thisCOB 4W GU10 LED spot lamp
Attition
Indoor use only, Do not hit or beat the lamp forcibly
Do not work with dimmer switch
No sundries around, no cover on the lamp due to heat sinking concern
Application of COB LED spotlight
-COB 2*6W LED as lighting source. No glare, no noise.
-Replaces 50W halogen AR111,80% energy saving.
-Low heat,no UV or IR light radiation
-Aluminium materialhousing with excellent heat conduction.
- Life span up to30,000hours, the LED efficiently protected by constant current power. .
- Original retrofit design
- Environmental protection, no mercury and hazardous substances.
- Widely used for indoor lighting, such as hotel, restaurant farm and home lighting, etc
Dimension of this AR111 spot light
Optics Parameter of 9W COB AR111 LED spot lamp G53
| LED | Origin | TAIWAN | ||
| LED Bright | 550-600LM/led for White @ 700mA | 500-550LM /led for Nature White @ 700mA | 450-500LM /led for Warm White @ 700mA | |
| LED Color Temperature/K | 6000-5500K | 4100-3900K | 3100-2900K | |
| CRI | ≥80% | ≥80% | ≥80% | |
| Lamp | LED Packing type | COB2*7W | ||
| Current / Whole lamp/mA | 600±20mA | |||
| Initial brightness/LM | 1000lm±10% | 960lm±10% | 890lm±10% | |
| Initial Light Efficiency/LM/W | 75Lm/W±10% | 73Lm/W±10% | 65Lm/W±10% | |
| Beam Angle | 30° | |||
| Luminosity Under 0.75m Distance | 7000lux±10% | 6600lux±10% | 6300lux±10% | |
| Luminosity Under 1.50m Distance | 1500lux±10% | 1500lux±10% | 1500lux±10% | |
| 1000 hours Light failure rate | < 5% @ 25℃ | |||
Temperature test records of soldering point of led
Main Electrical Specification of COB 4W GU10 LED spot lamp
| Power Consumption/W | 13W±10% |
| Input Voltage)/V | AC100-240V/50-60HZ |
| Input AC Current/A | 0.6A @ AC100V/50HZ 0.6A @AC240V/50HZ |
| Power factor/PFC | ≥0.9 |
| Drive Mode | Direct current driver |
| Start Time | 1000ms |
| Maximum duty cycle | 0.3 |
| Short Circuit Protection | Yes for driver |
| Open Circuit Protection | Yes for driver |
| Reverse Polarity Protection (RPP) | Yes for driver |
| Temperature Protection | NO |
Packing detials of thisCOB 4W GU10 LED spot lamp
| Net Weight/Lamp | 295g |
| Packaging Information | 1pc/gift box 36pcs/carton NW: 10.8kgs/ctn GW: 12.5kgs Carton Size:36*33.8*46CM |
Attition
Indoor use only, Do not hit or beat the lamp forcibly
Do not work with dimmer switch
No sundries around, no cover on the lamp due to heat sinking concern
Application of COB LED spotlight
