4w 5w 6w 3535 Smd Led Spot Light Gu10 With Cree Xpe Led Chip

Lamp Description of Cree 3535 SMD LED Spot light
This series items use the best quality Cree 3535 SMD LEDs as the light source and good quality Aluminum substrate Circuit board and also best LED Driver. Its high-end product with the high quality lamp for illuminating people's residential places or the commercial sites as shop, supermarket etc...

It use the best LED Driver and the features as below,

The inside LED power supply is isolated, constant current drived, it be make sure that the lamp would be very safe for operating and longer serive life. It also has the function of overtemperature protection, overvoltage protection and over-current protection.

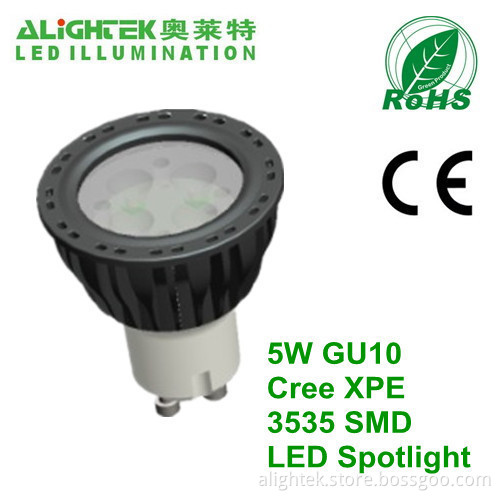

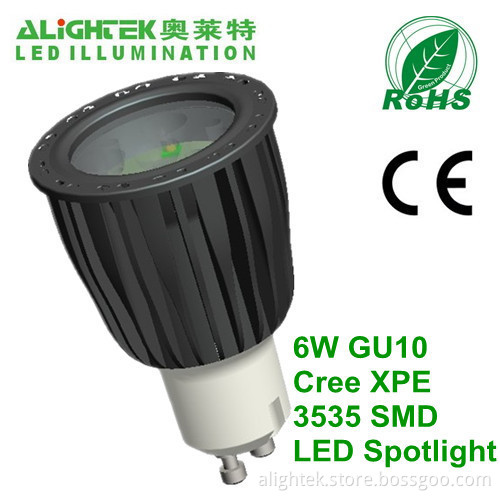

Photo of  Cree 3535 SMD LED Spot lights (GU10 MR16 base is available).

Main Parameters of Cree 3535 SMD LED Spot light

ItemsCode	Input Voltage	Total Power (W)	LED Source type	LED Qty. (pcs)	Lumen output (lm)	CCT range for WW, W, CW	Base type	LED Beam Angle	Lamp body Size (mm)
AL-SPXPE3535	AC100-240V	4W	Cree SMD3535 XPE LED	3pcs	280lm±10%	2700-3300K 4000-4500K 5500-6500K	GU10	25° 45° 60°	Φ50*55
	AC/DC12V						MR16		Φ50*48
	AC100-240V	5W	Cree SMD3535 XPE LED	4pcs	350lm±10%	2700-3300K 4000-4500K 5500-6500K	GU10	25° 45° 60°	Φ50*55
	AC/DC12V						MR16		Φ50*48
	AC100-240V	6W	Cree SMD3535 XPE LED	5pcs	420lm±10%	2700-3300K 4000-4500K 5500-6500K	GU10	25° 45° 60°	Φ50*73

Packing details of the 4Watts 5Watts 6Watts Cree XPE LED Spot lights

Item	Package size(mm)	Gross weight perinner box	Packing Quantity	Outer CartonSize(mm)	Gross weighteach carton
4W	52X52X60mm	45g	50PCS	275X275X150mm	2.5Kgs
5W	52X52X60mm	45g	50PCS	275X275X150mm	2.5Kgs
6W	52X52X78mm	65g	50PCS	275X275X190mm	3.7Kgs

Dimension drawing of 4W & 5W Cree LED Spotlights


Dimension drawing of 6W Cree LED Spotlight
