Features of 40W LED flood lamp light
The Flood Light Distribution
This LED floodlight's Effective Figures.
This LED Flood light projector made by the American branded Bridgelux LED chip and Taiwan Branded Mean Well LEDDriver.
1. Using high power Patent integrating COB Bridgelux LED as light source, high Light effects, the lamp's luminous efficiency can reach 80~100LM/W, and high color rendering index CRI>80Ra, low light attenuation.
2. Accommodate to wide input voltage from 85V~265VAC, constant voltage & current output, it can start up at once with no flickering, lightning protection and PFC function available.
3. High efficiency & energy saving. Under the condition of the same illumination, it saves more than 70% energy compared with the traditional flood lamp.
4. Adopting die casting aluminum alloy electricity box, which have good strength, good heat dissipation property, and with baking varnish treatment, the lamp is anti-corrosion, can be used in outdoor lighting.
4. Adopting die casting aluminum alloy electricity box, which have good strength, good heat dissipation property, and with baking varnish treatment, the lamp is anti-corrosion, can be used in outdoor lighting.
5. Eco-friendly, Recyclable. No UV & IR. It won't distribute ray radiation, also it won't generate EMI. Good for eyesight protection; Protection level reaches IP65.
6. Good Thermal conduction design, integration of the advanced die-casting forming, small contact resistance, high cooling efficiency
7. It comes with PIR switch, the induction time and sensor type can be set freely, meet up with certain illumination needs.

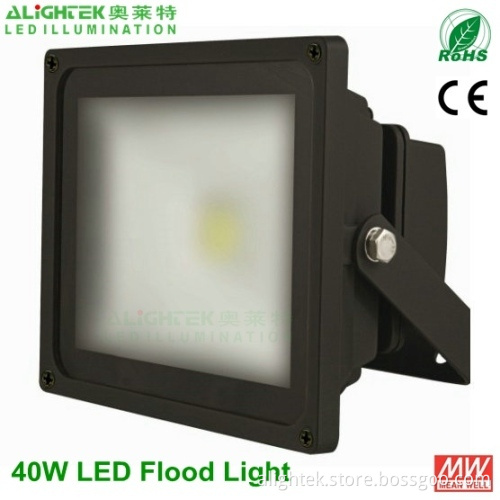

Real Photo of 40W LED Flood light
LED Driver Parameters
Light fixture Parameters
This LED flood lamp dimension
Three Installation ways as below,
LED Driver Parameters
| Power | 40W |
| Input Voltage/Frequency | 85-265VAC/ 50-60Hz |
| Input Current(Typ) | 0.53A MAX |
| Output Voltage | 30-36V |
| Output Current | 1.2MA |
| Efficiency(Typ) | 86% |
| Power Factor(Typ) | PF over than 95 |
Light fixture Parameters
| LEDChips QuantityLED | 1 Piece |
| System Consumption | 40W |
| LED Luminous Efficiency | 80-100Lm/W |
| Color Temperature | 2700K - 7000K |
| Lamp's Initial LuminousEfficiency | ≥70Lm/W |
| Lumen Maintenance | 70%(50000Hrs) |
| Color Rendering Index | Ra≥80 |
| Beam Angle | 120°or 60° |
| Operating Temperature | -40℃ +45℃ |
| Storage Temperature | -40℃ +70℃ |
| IP Grade | IP65 |
| Life-span | 50000Hrs |
| Materials | Aluminium |
| Appliance Class | ClassⅠ |
| The color of the lamp shell | Black/Silver |
| Power line | 1 mm2 The three wires |
| Package for total 2pcs 40W LED flood lamp light | |
| Lamp inner package size | 185*325*265(mm) |
| Outer Carton package size | 355*400*285(mm) |
| Packing Weight of the radiator | 7.35KGS |
| Net weight | 3.10KGS |
This LED flood lamp dimension
Three Installation ways as below,
The Flood Light Distribution
This LED floodlight's Effective Figures.
Applications:
Widely used indoor and outdoorcommerciallighting as Wall wash lighting,swimming pool lighting,watercascadeslighting, building frontage lighting, parckinggaragelighting,landscaping lighting, parking lot lighting, illuminationforhouse,shopwindow , display hall, commodity excite exhibitionroomandbillboard; Gymnasiums lighting, factory lighting,advertisingboardlighting, Garden lighting etc.
