Features of 80W LEDFlood light
1. Using high power Patent integrating COB Bridgelux LED as light source, high Light effects, the lamp's luminous efficiency can reach 80~100LM/W, and high color rendering index CRI>80Ra, low light attenuation.
2. Accommodate to wide input voltage from 85V~265VAC, constant voltage & current output, it can start up at once with no flickering, lightning protection and PFC function available.
3. High efficiency & energy saving. Under the condition of the same illumination, it saves more than 70% energy compared with the traditional flood lamp.
4. Adopting die casting aluminum alloy electricity box, which have good strength, good heat dissipation property, and with baking varnish treatment, the lamp is anti-corrosion, can be used in outdoor lighting.
4. Adopting die casting aluminum alloy electricity box, which have good strength, good heat dissipation property, and with baking varnish treatment, the lamp is anti-corrosion, can be used in outdoor lighting.
5. Eco-friendly, Recyclable. No UV & IR. It won't distribute ray radiation, also it won't generate EMI. Good for eyesight protection; Protection level reaches IP65.
6. Good Thermal conduction design, integration of the advanced die-casting forming, small contact resistance, high cooling efficiency

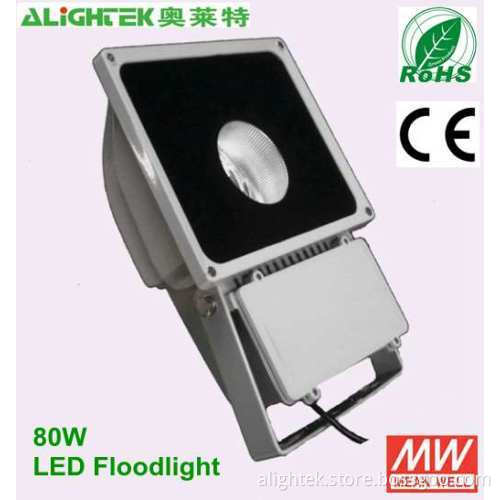

Pictures of 80W LEDFlood light
LED Driver Parameters of 80W LEDFlood light
| Power | 80W |
| Input Voltage/Frequency | 85-265VAC/ 50-60Hz |
| Input Current(Typ) | 1.0A MAX |
| Output Voltage | 30-36V |
| Output Current | 2.5 A |
| Efficiency(Typ) | 86% |
| Power Factor(Typ) | PF over than 95 |
Light fixture Parameters
| LEDChips QuantityLED | 1 Piece |
| System Consumption | 80W |
| LED Luminous Efficiency | 80-100Lm/W |
| Color Temperature | 2700K - 7000K |
| Lamp's Initial LuminousEfficiency | ≥70Lm/W |
| Lumen Maintenance | 70%(50000Hrs) |
| Color Rendering Index | Ra≥80 |
| Beam Angle | 120°or 60° |
| Operating Temperature | -40℃ +45℃ |
| Storage Temperature | -40℃ +70℃ |
| IP Grade | IP65 |
| Life-span | 50000Hrs |
| Materials | Aluminium |
| Appliance Class | ClassⅠ |
| The color of the lamp shell | Black/Silver |
| Power line | 1 mm2 The three wires |
| Package for total 2pcs 80W LED light projector | |
| Lamp inner package size | 150*330*435(mm) |
| Outer Carton package size | 315*345*455(mm) |
| Packing Weight of the radiator | 12.2 KGS |
| Net weight | 5.3 KGS |
This LED flood lamp dimension
Three Installation ways as below,

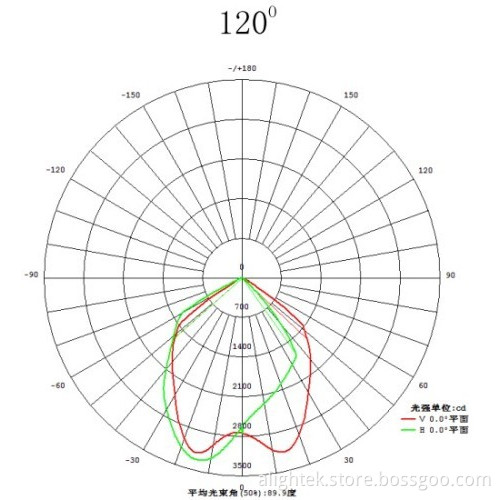

The Flood Light Distribution Curve
This LED floodlight's Effective AAI
Applications:
Widely used for indoor and outdoor illumination as Wall wash illumination, swimming pool illumination, building frontage illumination, landscaping lighting, parking lot lighting, billboard illumination; Gymnasiums luminaries, factory luminaries, advertisement/billboard luminaries, Garden luminaries and other LED luminaries.
3 Years Warranty
Remark:The warranty on the base of right storing way, right installing method, right using way, right maintaining way. During the warranty time, we would repair or replacing parts or replacing the whole products according the detailed situation. And we'll charge the customers some material fee and labor cost if the product out of our warranty time.
