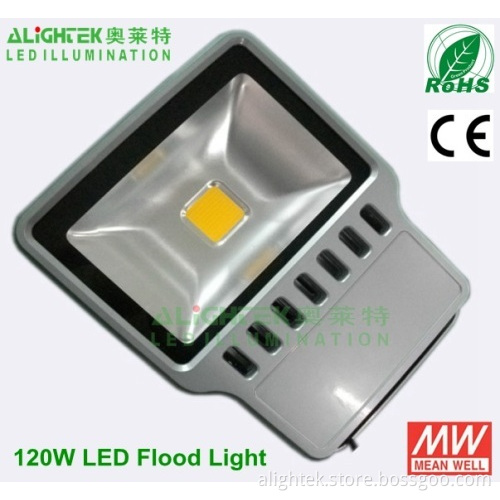

Features of 120W LED Flood light
This LED flood lamp is a new version of flood lighting that made withthe most advanced COB LED technology. Making a comparison with theconventional floodlights, it can be much better heat dissipation, veryless lumen decrease, consistent color beam emitting, no ghost image,more than 80% energy saving, eco-friendly, longer lifetime. Moreover,the products made with the branded American LED Chip and quality LEDdriver made from Taiwan. QUALITY LED FLOODLIGHTS. It's a good choice to cooperate with us if you want to find a good partner to save you more time to expand the markets with"Zero complaint" from customers.Our testing procedures on 120W LED flood light
LED Driver Parameters of 120W LEDFlood light
| Power | 120W |
| Input Voltage/Frequency | 85-265VAC/ 50-60Hz |
| Input Current(Typ) | 1.6A MAX |
| Output Voltage | 30-36V |
| Output Current | 3.8 A |
| Efficiency(Typ) | 86% |
| Power Factor(Typ) | PF over than 95 |
Light fixture Parameters
| LEDChips QuantityLED | 1 Piece |
| System Consumption | 120W |
| LED Luminous Efficiency | 80-100Lm/W |
| Color Temperature | 2700K - 7000K |
| Lamp's Initial LuminousEfficiency | ≥70Lm/W |
| Lumen Maintenance | 70%(50000Hrs) |
| Color Rendering Index | Ra≥80 |
| Beam Angle | 120°or 60° |
| Operating Temperature | -40℃ +45℃ |
| Storage Temperature | -40℃ +70℃ |
| IP Grade | IP65 |
| Life-span | 50000Hrs |
| Materials | Aluminium |
| Appliance Class | ClassⅠ |
| The color of the lamp shell | Black/Silver |
| Power line | 1 mm2 The three wires |
| Package for total 2pcs 120W LED luminaire | |
| Lamp inner package size | 185*395*470(mm) |
| Outer Carton package size | 395*415*490(mm) |
| Packing Weight of the radiator | 20.5 KGS |
| Net weight | 9.50 KGS |

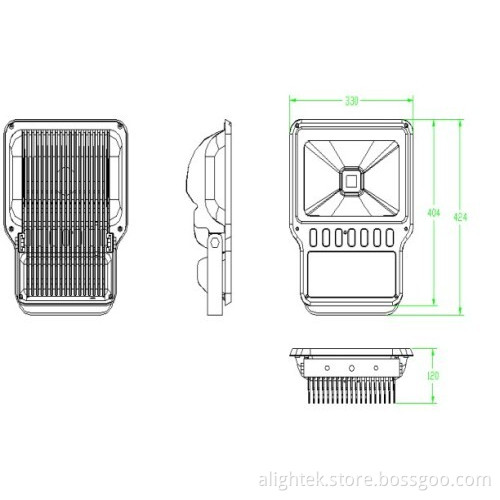

Dimension Diagram
Installation instructions of LED floodlight
1. Make the flood light fixtures Installed on the fixed frame (wall) on the lamp bracket and fixed frame with the three screws
2. Working and Storing in the normal temperature.
3. When installing the products, the point of connecting of wires must be closed very well to avoid the leakage of electricity
4. Must take the right waterproof protection when connect the outside power wires.
5. Prohibit violating any fire protecting rules when using it.
6. Please find a professional electrician when installing. And the ways of connecting of three wires is that Brown is live wire, Blue is null line, Yellow is earth wire.

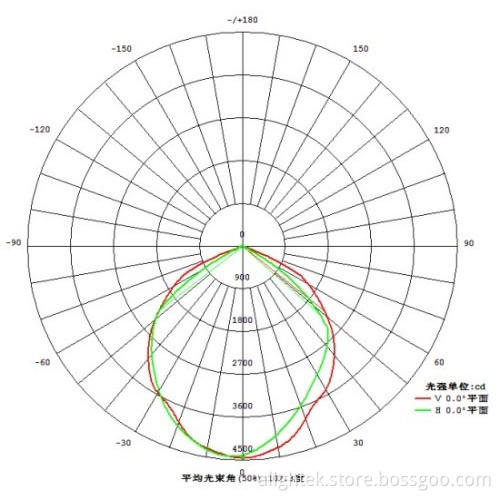

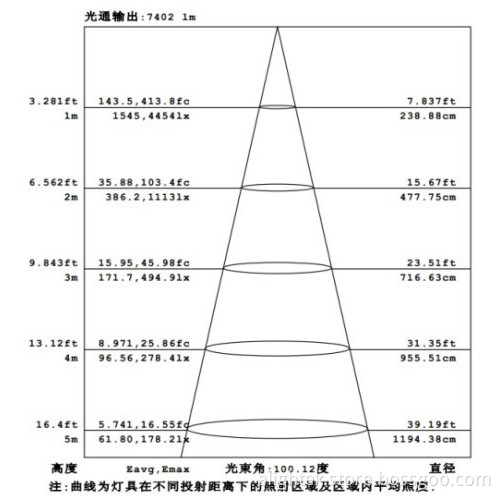

This LED floodlight's Effective AAI (120 degree)
Applications:
Widely used for indoor and outdoor illumination as Wall wash illumination, swimming pool illumination, building frontage illumination, landscaping lighting, parking lot lighting, billboard illumination; Gymnasiums luminaries, factory luminaries, advertisement/billboard luminaries, Garden luminaries and other LED luminaries.
