Features of 180W LED flood light
1. Latest design with very attractive appearance & better heat dissipation
2. Big size 3pcs COB 60W Bridgelux LED chip with high lumen efficiency
3. Original Mean Well LED Driver with high Powe Factor
4. Provide with 5 years guarantee with stable reliable quality
5. Various colour available such as Black, grey, silvery white or blue colours
6. Other high power LED floodlight could be provided with 150W and 210W
Moreover, we produce the flood lamp housing by ourselves, so the quality could be better controllable with good price.

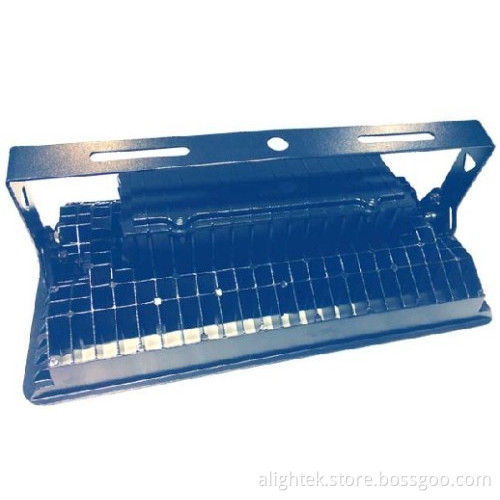

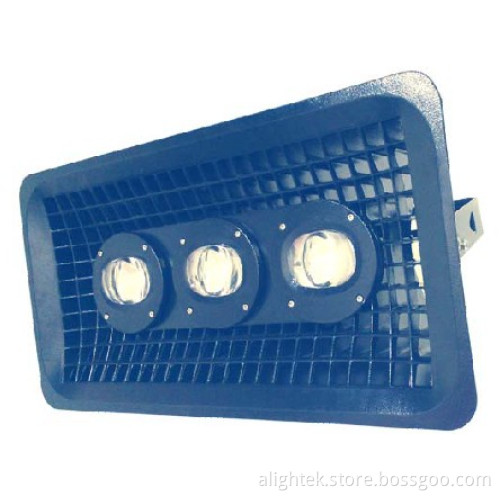

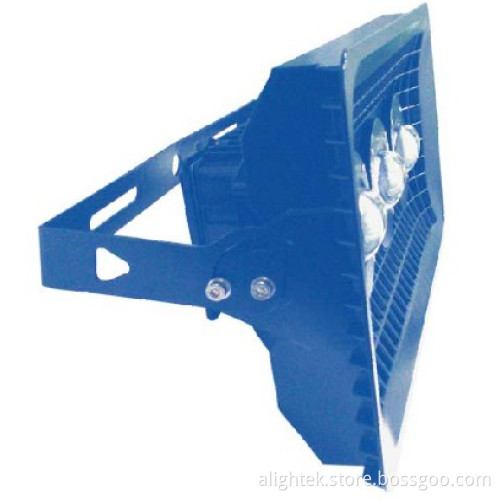

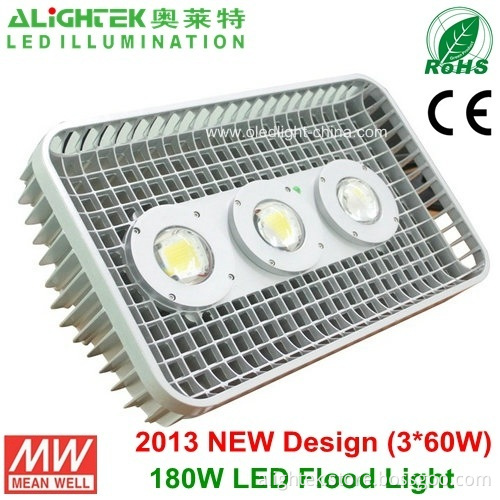

Actual picture of 180W LED flood light
Dimensional drawing of 180W LED Flood light
1. Latest design with very attractive appearance & better heat dissipation
2. Big size 3pcs COB 60W Bridgelux LED chip with high lumen efficiency
3. Original Mean Well LED Driver with high Powe Factor
4. Provide with 5 years guarantee with stable reliable quality
5. Various colour available such as Black, grey, silvery white or blue colours
6. Other high power LED floodlight could be provided with 150W and 210W
Moreover, we produce the flood lamp housing by ourselves, so the quality could be better controllable with good price.
Actual picture of 180W LED flood light
Dimensional drawing of 180W LED Flood light
LED Flood light fixtures Parameters of 3x60W LED floodlight
| Power Consumption | 180W |
| LED Chip Brand | American Bridgelux LED |
| LED Chips Quantity | COB 3pcs 60W |
| LED driver Brand | MeanWell Powe Supply from Taiwan |
| Input Voltage | AC85V-265V |
| Frequency Range | 50Hz ~ 60Hz |
| Operating Voltage | 30v-36vDC |
| Power Factor efficiency(Typ) | PF0.9 |
| LED Luminous Efficiency | 80-100 Lumen per Watt |
| Color Temperaturerange | 2700K ~ 7000K at your request |
| Color Rendering Index | Ra≥80 |
| Luminous efficiency | 90~100lumen/watt |
| Initial Lumen | 18100LM |
| Lumen Maintenance | 16800lm ±10% |
| Beam Angle | 90°or 120° for the application need |
| Working Tempearture | subzero 40°~ + 55℃ |
| Storage temperature | subzero 40°~ + 70℃ |
| Best operating temperature | 0~ 30℃ |
| Working lifespan | 50000 hours at normal conditions |
| Lamp Body material | Aluminum Die Casting with good heat emission |
| Colours of lamp housing | Black, grey, silvery white or blue colours |
| IP Grade | IP65 |
| Net weight | 7.8 KGS |
| Grossweight | 9.0 KGS |
| Packing | Neutral package or with customizedwith your LOGO |
| Quality guarantee period | 3 years or 5 years available |
| Cetificate | CE,RoHS, FCC, PCS, IP65 approval |
Applications of LED flood lamp lighting
1. basketball filed led food illumination, football court led flood lighting, gas station, warehouse
2. billboard illumination, Square lighting project, park lighting, architectural decoration lighting,
3. parking lot lighting needs, basketball court illumination, Garden lighting,conference and exhibition center etc...
1. basketball filed led food illumination, football court led flood lighting, gas station, warehouse
2. billboard illumination, Square lighting project, park lighting, architectural decoration lighting,
3. parking lot lighting needs, basketball court illumination, Garden lighting,conference and exhibition center etc...
