90w Gas Station Explosion Proof Led Flood Light
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Key Product Features of 90W Gas Station Explosion Proof LED Flood Light
2.Constant Current LED Driver: It's constant current & constant voltage design,
Stable electrical current, instant start-up without flicker, more than 0.98 power factor with high efficiency, safety and reliability.
3.Anti-corrosive high-pressure die casting aluminum alloy lamp body with thickness
4mm tempering glass could be well for explosion proof circumstance.

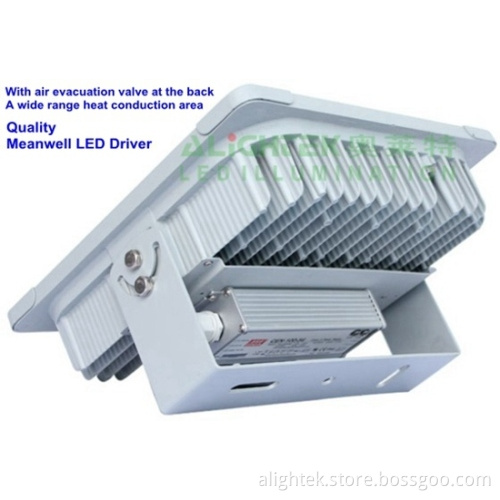

4.Covered with evacuation valve onto the back of fin type heat sink for better thermal conduction.
5. Firmly sealed with silicone rubber which can be resistant to elevated temperatures (over than150℃),
anti-aging, good waterproof and dustproof seal hermetically for the light fitting's body.

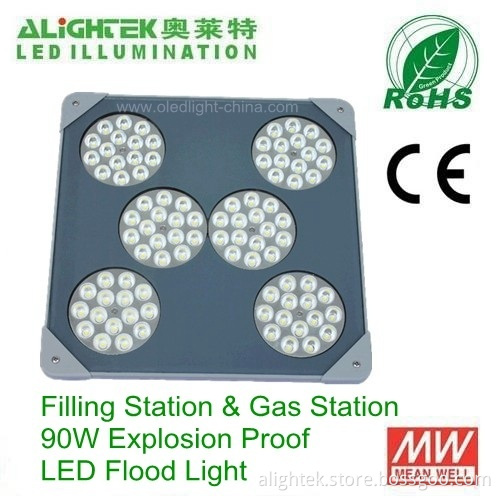

Photos of 90W Petrol Station Explosion Proof LED Lamp
Technical Parameters of the 90W Gas Station LED Flood Light
Installation diagram & Light distribution Curve of the LED Explosion Proof Lamp
Dimensional Diagram ofthis Explosion Proof LED Lamp
1.Modular design: Use 90pcs 1watt high power LED as the light source,
adopt the exceptional modular lighting design with multiple chips integrated into one single module with good heat conduction ability.
adopt the exceptional modular lighting design with multiple chips integrated into one single module with good heat conduction ability.
2.Constant Current LED Driver: It's constant current & constant voltage design,
Stable electrical current, instant start-up without flicker, more than 0.98 power factor with high efficiency, safety and reliability.
3.Anti-corrosive high-pressure die casting aluminum alloy lamp body with thickness
4mm tempering glass could be well for explosion proof circumstance.
4.Covered with evacuation valve onto the back of fin type heat sink for better thermal conduction.
5. Firmly sealed with silicone rubber which can be resistant to elevated temperatures (over than150℃),
anti-aging, good waterproof and dustproof seal hermetically for the light fitting's body.
Photos of 90W Petrol Station Explosion Proof LED Lamp
Technical Parameters of the 90W Gas Station LED Flood Light
| InputVoltage | AC85V-265V | |
| FrequencyRange | 50Hz-60Hz | |
| TotalHarmonic distortion | ≤9% | |
| Power factor | 0.98 | |
| LED Operatingvoltage | DC30V-36V | |
| Total LEDQuantity | 90 pcs | |
| LED powerconsumption | 90 Watts | |
| Total systemPower consumption | 99 Watts | |
| LED lightluminous efficiency | 85~92lm/Watt | |
| TotalLuminous flux | warm white | 7,660 lumen |
| pure white | 8,150 lumen | |
| cool white | 7,850 lumen | |
| Lightefficiency | 90% | |
| Averageilluminance | Height 4m | 582.8 LUX |
| Height 6m | 258.0 LUX | |
| Height 8m | 145.0 LUX | |
| Illuminancearea | Height 4m | Dia 8.50 meters |
| Height 6m | Dia 10.0 meters | |
| Height 8m | Dia 11.5 meters | |
| Illuminanceuniformity | 0.7 | |
| Colourtemperature range | warm white | 2700-3000K |
| pure white | 4500-5000K | |
| cool white | 6500-7500K | |
| Colourrendering index | 70 ~ 85 Ra | |
| Lightdistribution | Symmetric / Circle spot | |
| Light design | High Power LED with PC lens | |
| LED Junctiontemperature | ≤70℃ | |
| Workingcondition | Subzero 40℃ to 45℃ | |
| Storagecondiiton | Subzero 40℃ to 65℃ | |
| LED servicelifespan | 50, 000 hours | |
| PSUconnection | Brown | L(live line) |
| Blue | N(null line) | |
| Yellow or Green | G(ground line) | |
| Lamp outerhousing colour | Grey | |
| Netweight/gross weight | 7.2KGS/piece; 8.0KGS/piece | |
| PackingCarton Size | 34.5x34.5x26cm | |
| ProtectionLevel | IP65 Outdoor Waterproof | |
Installation diagram & Light distribution Curve of the LED Explosion Proof Lamp
Maintenance guide
1.Please make sure the electrical source has been Cut off before maintenance.
2.The glass and lens better to be cleaned regularly to keep good light transmittance.
3. Periodically clean dust on the outer housing and the heat sink for keeping good heat conduction.
4.Don't use water or corrosive liquid to cleaning it up, better using the dry duster cloth.
5. When it needs to replace for a new LED driver, it just need to use the screwdriver to take it off. It's very easy and convenient. The most important is that don't mix the wires up, make sure the wiring is right. (L: Live line with brown wire; N: Null line with blue wire; G-ground line with yellow or green wire.)
Dimensional Diagram ofthis Explosion Proof LED Lamp
Instruction:
1.Please note that the light fixture's working voltage/frequency: AC85v-265v, 50Hz-60Hz.
Please operate it within the voltage range & frequency range.
2. It contains the aluminum accessories, so it should be handled carefully and don't make great pressure on it.
