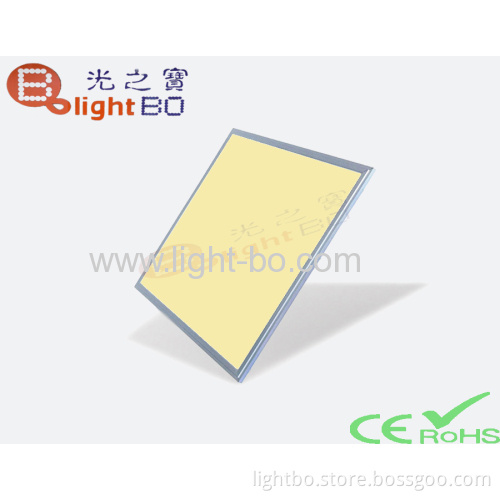

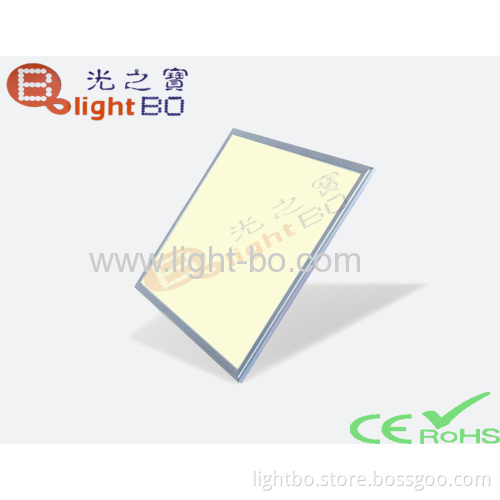

6000-6500k 36w Led Panel Light For Office/meeting Room 595 X 595 X 9 Mm

6000-6500k 36w Led Panel Light For Office/meeting Room 595 X 595 X 9 Mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

2800K- 6500K 36W 40W 48W SMD Led Panel Light For meeting room / office 595 x 595 x 9 mm

Quick Details:

Ultra thin: 9mm thickness only

Dimensions: 595 x 595mm

Light source; SMD LED

LED Qty :180 pcs

Power: 36W

Flux: 3325lm

CCT: 2800K-6500K (Optional)

Specification:

Model	LB-LB-366060A01
Description	Recessed Constant current LED panel light
Dimension	595 x 595 x 9.0mm
Light source	SMD LED
LED QTY	180 PCS
Overal Power	36W (includes driver)
Input voltage (Driver)	100-240VAC /50-60HZ
LED Diver Efficiency	≥85%
PF	≥0.95
Input voltage
Input current
Operating temperature	-40~+60℃
CCT	2800-6500K (Optional )
Luminous Efficiency	95lm/W
Luminous Flux	3325lm (±3%)
CRI	Ra ≥ 80
Bean-angle	120 °
Protection grade	IP44
Temperature rising	< 20 ℃
Relative humidity	10%-80%RH
Net Weight (includes driver)	4.3KG
Insulation class	CLASS II
Certificate	CE, RoHS

Led Panel Light Dimensions:

Colour Temperature Comparison:

Lifespan Comparison:

Grille Lamp	6,000 Hrs	Increasing the replacement cost
LED Panel Light	50,000 Hrs	Long lifespan with 3-year-warrenty

Light Distribution Graph & Illumination intensity chart:

Colour Temperature Option:

LED Panel Light Power Connection :

LED Panel Light Installation Instruction:

LED Panel Light Packing:

Aging Test:

LED Panel Light Application:

LED panel lights are widely used in public place such as hotel, office, meeting room, school, hospital, supermarket, shopping center, resisdence, station, entertainment, advertising background and so on.
