Ir Waterproof Ccd Night Vision Cameras

 Products :    IR  waterproof  CCD  night  vision   cameras

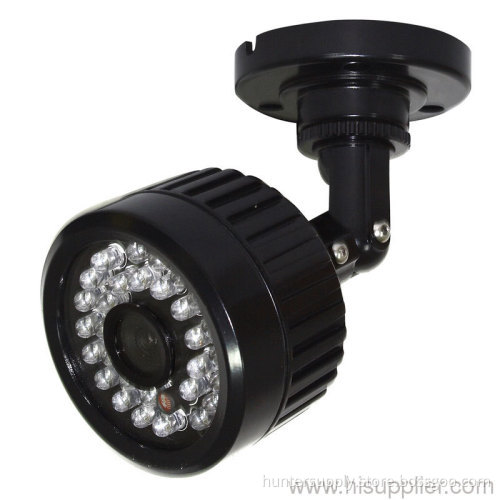

              IR  waterproof  CCD  night   vision   cameras

                        Waterproof  camera with  ir   vision

R Weatherproof Camera
This HIGH RESOLUTION surveillance camera series is designed to suit versatile security demand with the HIGH QUALITY PERFORMANCE
SONY/SHARP Color CCD optional 420TVL-600TVL optional ,   CMOS420TVL/CMOS 600TVL areoptional
Built-in infrared LED, may work under zero degree of illumination environment
IR LED:￠5X24PCS, IR Distance:20M
3.6mm Board Lens
3-Axis Cable Built-in bracket design, convenient installation

Camera Type	Color Weatherproof IR Camera
Image Sensor	1/3 Inch SONY ExView Ⅱ CCD,EFFIO
Effective Pixels	PAL:976 (H) × 582 (V) NTSC:976 (H) × 494 (V)
Sensing Area	4.9mm x 3.7mm
Signal System	PAL /NTSC
Horizontal Resolution	700 TV Lines
Min. Illumination	Color(0.01 Lux), B/W(0 Lux,IR On)
Lens Mount	Board Lens 3.6mm
S/N Ratio	More Than 52dB (AGC Off)
On Screen Display	Yes
OSD Function	Manual/DC Lens/Shutter/AGC/WB/Pict Adjust/ Mirror, Day/Night,DNR,ART, BLC/HLC, Motion Detect, Privacy Zone,
Electronic Shutter	1/50(1/60) ~ 1/10,000 Sec.
White Balance	Auto
AGC	Auto
Infrared Luminary	24 pieces IR-LED
Infrared Wavelength	850 nm
Illuminate Distance	20 M
Waterproof Criterion	IP66
I/O Connector	Power : DC Power Jack , Video Output : BNC
Video Output Level	1.0 Vp-p (75 Ohms, composite)
Supplied Voltage	DC12V Voltage
Power Consumption	IR On: 300mA max., IR Off: Less than 130mA
