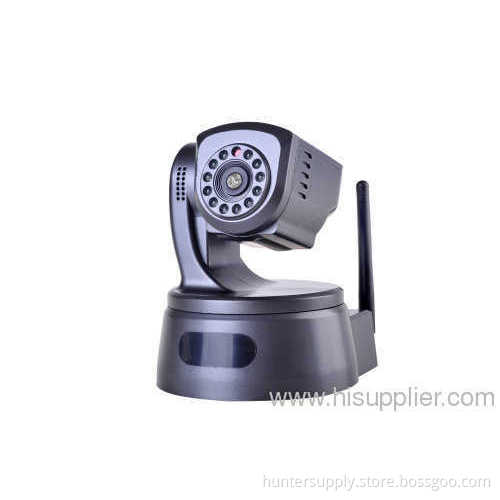

Products : 1.0MP wireless IP Camera

Wireless1.0MPIPCamera/CompatibleONVIFwirelessIPcamera

1/4" 1.0 Megapixel CMOS Sensor,Max image Resolution 1280*720@25fps

H.264 Main Profile @ level 5.0 coding, Real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable

Support Color/BW mode converting, IR-CUT Filter

Support Two-way Audio (Built-in MIC)
Auto-retrieve function and auto-connection network

Built-in Pan/tilt,horizontally 355°,vertically 120°

Support the SD card record, multiple record mode(Timed record, Motion Detection Record, Alarm Record), and support push the video to your smart phone when motion detected

Support Plug-and-Play, including PC surveillancesoftware and mobile phone client, remote network surveillance so easy

IntegratedONVIFstandard, Compatibility with third-party ONVIF platform software
Wireless1.0MPIPCamera/CompatibleONVIFwirelessIPcamera

Model	AP-P536
Hardware
Processor	HI3518C
Sensor	1/4" 1.0 Megapixel CMOS Sensor
Lens	3.6mm Fixed Lens
IR LED	12 IR Leds, IR Distance 5~10m
Day/Night	IR CUT filter
Min. Illumination	0.5lux; 0 lux with IR on
Max S/N Ratio	50dB
Video
Compression	H.264
image	main stream: 1280x720@1-25fps sub stream: 640x360@1-25fps 320x180@1-25fps
Bit Rate	128~4096kbps, Supports CBR/VBR
Image Control	Hue, saturation, brightness, contrast, exposure
Auto Image Control	AE, AWB
Audio
Compression	G.711-A
Bit Rate	64kbps/128kbps
Talkback	support
Network
Protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP
Compliance	ONVIF 2.1(1.02 backward compatible)
PC Client and Browser	ISS, IE6.0 and above, Google Chrome, firefox
Mobile phone	Iphone, ipad, Android
WIFI	support
Wireless LAN	IEEE802.11n Standard
WIFI Encryption	WAP, WAP2
Interface
Audio Input	Built-in MIC
Audio Output	1 CH 3.5mm audio output interface
Alarm Input	1 CH alarm input interface
Alarm Output	1 CH alarm output interface
LAN	1 RJ45 10M/100M Ethernet port
Wireless	1 CH SMA antenna interface
Storage Interface	Micro SD (TF) Card slot, SD 2.0 standard, maximum 32GB
Reset Button	Built-in reset button
General
Working Temperature	-10℃~ +55℃
Working Humidity	0% - 90%
Power Supply	DC 5V/2A
Power Consumption	Max 8W
Dimensions	103108125mm
Weight	500g
Approvals	CE , FCC, RoHS
