Basic Info

Product Description

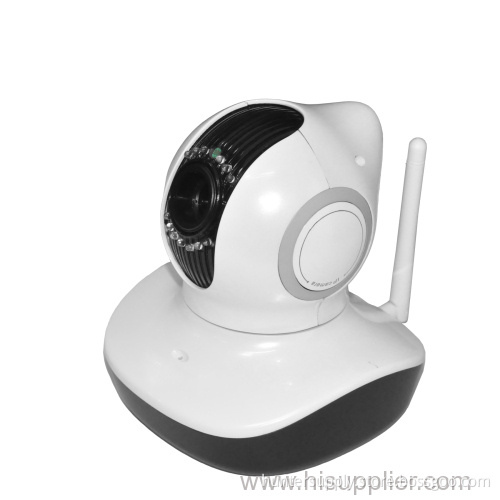

Products : 3G Network IP Camera

3G networkwirelessIPP2Phomesecuritycamera

IE browser view in Chinese and english ,Friendly GUI, DIY installation

1.0 Megapixel

Built-in IR-Cut function

Free domain name bounded

H.264 standard compression format
Support 3G network
P2P function

Dual stream, resolution 720p(1280*720) /QVGA(320*240)

Mobile view, support most of the intelligent cellphone

Support email alarm,FTP photo alarm etc.

IR distance 10m

Support 32G local memory

Support Two-way audio

Support ONVIF , compatible with DaHua NVR
3G networkwirelessIPP2Phomesecuritycamera

AP-P549
Image sensor	1/4 inch OV9712 CMOS Image sensor
Pixel	MegaPixel
Resolution	WXGA:1280(H)×720(V)
Filter switch	auto-switch automatically, without color cast
Nightvision	3Φ13 LED lights, IR distance: 10 m
automatic diaphragm	support
Lens characteristics	Fixed focal:3.6mm/F1.2
LUX	0.1LUX/F1.2
SNR	≥48dB
Gain Control	Auto
WB	Auto
electronic shutter	Auto
Compression standard	H.264 BaseLine Profile 3.1
Compression Resolution	720p(1280×720)/VGA(640×480)/QVGA(320×240)
Frame rate	Main stream maximum frame rate 30fps,Time stream fixed 10fps
code rate	64K2Mbps Code rate adjustable,Can set grade or self-adaptable
PTZ	Built-in motor control , Rotation angle :Horizontal: 355° vertical: 80°
Audio
Compression standard	AMR
code rate	12.2Kbps
Input	One channel,3.5mm JACK LINE IN Built-in high sensitivity MIC,distance 5m
Output	1 channel,3.5mm JACK SPEAK OUT
Video
file format	AVI file format
storage	Interior TF card, file system FAT,Max 32GB,standard configuration 4GB TF card external USB Hard Disk,file system FAT32,Max 2TB Prefer using external USB hard disk storage
Automatic cover	When available storage space is less than 10%(adjustable),Automatic delete history video files
24 hours or timing video	support,Can set week and time quantum plan, can save video files as every 10 minutes, 15 minutes, 30 minutes and 60 minutes
Manual	support,Terminal control the open video and end video, record time can be prolong
Alarm	support, Advance record live Video 5 s before the alarm trigger
search	support,according to time, type to search video files
online browse	support, Terminal software online browsing video files,Can playback\Key Frame browse\Drag time axis\Suspend ,etc.
management	support,Terminal software download\Batch Remove\A key to remove the video files
Alarm
Mobile detection	support,High, medium and low level 3 sensitivity Settings
SMS alarm	support
3G visual telephone	support
platform	support iPhone delivery alarm
video	support
Others
LAN	10BaseT/100BaseTX Ethernet,RJ45 interface
protocol	HTTP\NTP\VIF\DNS\DHCP\UPNP
WIFI	Wi-Fi 802.11g/n
Infrared compensation	Built-in IR light, distance 5 ~ 10 meters
LED indicator light	Red & blue indicator light,system light(red)and Network light(blue) Red light slow flash, System operate normally Red light flash three times and blue light flash once,shows 3G network connects normally. Red and blue light flash alternately,shows users are monitoring or upgrading firmware, restoring to the factory settings,should prohibit the interruption of power supply.
reset	Press on the reset button for 15s continuously to restore to the factory default settings.
WiFi Model Switch	switch between AP and STA mode,about 5s it takes effect.
SIM Card socket	Support,standard USIM card
Date & time	RTC real-time clock,support NTP Network time calibration and system time remote Settings
watchdog	Software and firmware Watchdog double protection
power supply	5V DC 2A
Power consumption	Less than 5W
Use environment	Temperature -10℃+55℃,Humidity 10%90%
Size	Item size:120 x 120 x 130mm (LWH)
Weight	Item Weight:340g
Accessories	Power adapter, CD, manual, bracket, screws, antenna
Material	Plastic
Installation	Indoors, Ceiling or hanging
