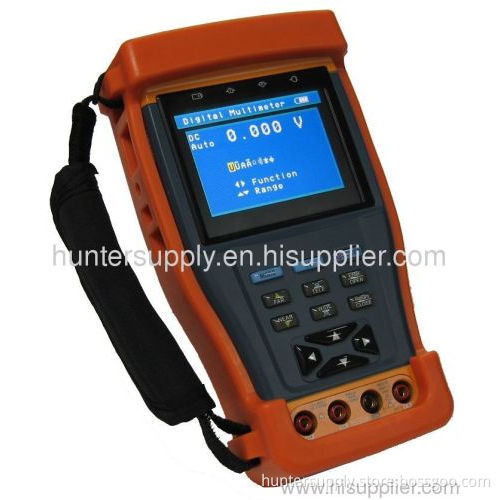

Optical Power Meter Cctv Tester

1. 3.5"TFT-LCD , 960(H)×240(V)resolution.
2. Video Level testing, video signals measured in IRE or mV

3. DC12V 1A power output for camera
4.Audio input testing

5. Optical power meter, used for optic fiber CCTV monitor system, CATV system, optic fiber communication networks deployment and test.

6.PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position
7.   PTZ continuing rotate test

8. Video displaying. Automatically adapts and displays the video format of NTSC/PAL.

LCD Brightness/Contrast/Color Saturation are adjustable.

9.Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines)
10. Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.
11. Cable testing. It is powerful in testing LAN cable, measuring the connecting status ,displaying the sequence of connection and the NO. of the LAN cable.

12.Multi-interface and Multi-baud rate. Support RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps.

13.Multi-protocol. Supports more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.

14.   PTZ address scanning, search up the ID of PTZ camera.

15.Lithium Ion Polymer Battery (3.7V DC3000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging for 4 hours.

MODEL	CCTV Security Tester
Video Test
Signal mode	NTSC/PAL (Auto adapt)
Display	3.5 inch digital TFT-LCD ,960 x 240 resolution
LCD adjustment	Brightness, Contrast, Saturation adjustable
Video IN/OUT	1 channel BNC Input & 1 channel Output
Video Output Mode	1.0 Vp-p
Video Level test
Level test	Video signals measured in IRE or mV
PTZ controller
Communication	RS232, RS422 simplex and RS485
PTZ Protocol	Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate	150,300,600,1200,2400,4800,9600,19200bps
Video Signal Generation
Color bar generation	Output one channel PAL/NTSC colorbar video signal for testing monitor or video cable.
Optical Power Meter
Wavelength	850, 1300, 1310, 1490, 1550, 1625nm
Measurement	-70~+10dBm
UTP CABLE TEST
UTP cable test	Test UTP cable connection status and display in the screen. Read the number of the test box.
DC12V 1A power output
DC12V power output	Output DC12V1A power for camera
Audio input test
Audio input test	test the pickup and other audio equipments on the front-end
RS485 data analyst
Data Monitor	Captures and analyzes the command data from controlling device
POWER
Power Adapter	DC5V, 2A
Battery	Built-in 3.7V Lithium polymer battery ,3000mAh
Rechargeable	After charging 3-4 hour, working time lasts 12 hours
Low Consumption	Energy saving technology
General
Working Temperature	-10°C---+50°C
Working Humidity	30%-90%
Dimension/Weight	176mmx94mmx36mm/340g
