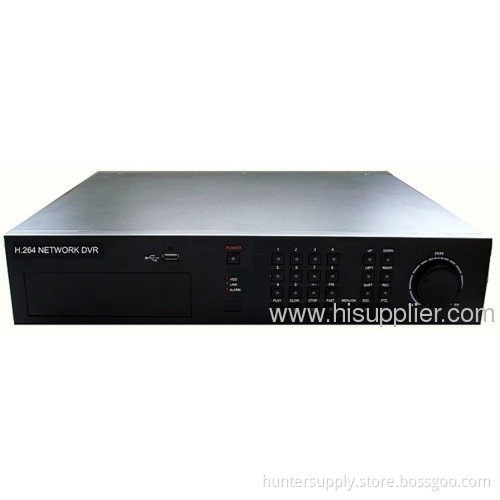

32ch Digital Video Recorder With Hdmi Output

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Products :32ch Digital Video Recorder

32ch Digital Video Recorder
32chdigitalvideorecorderwithHDMIoutput

1. Intelligence analysis system:Intelligent analyze function including girth detection (cordon, alert area), items, care (loss, left), video diagnosis, as well as the core intelligent analysis function, at the same time support alarm linkage, let monitoring more secure.

2. Step on the Internet:Can penetrate through all kinds of network via cloud service, to do remote control easily & conveniently without any complicated setting.

3. Compression algorithm ideal:Compression algorithm upgraded to H.264 Main Profile,the advanced space-time filter technique makes the code stream lowered at least 30%.

4. Playback quality:8ch D1 & 8ch CIF

5. Main and Sub Stream:Support main stream and extra steam encode synchronously. Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.

6. Mobile monitor: Support all kinds of mobile monitor(iPhone, Windows Mobile, BlackBerry, Symbian, Android)

7. Display:Support TV\VGA & HDMI output synchronously, VGA, HDMI full hd 1080 p display output, make the traditional monitor display effect upside down

8. Operation interface:similar WINDOWS operating style,powerful right button menu function of mouse, make it easy for using.

9. Network:Powerful net service(support DHCP\PPPOE\FTP\DNS\DDNS\NTP\UPNP\EMAIL\IP authority\IP search\alarm center, etc),complete enclosure(WEB\CMS\SDK),to easily achieve interconnection.

10. Browsers:Support multi-browser(IE\Chrome\Firefox\Safari)

11. Remote Access:Self enclosed with DNS function (ARSP),one-key to enable remote control, and support DNS of 3322\dyndns\oray\myq-see, etc

12. Device port:Device port:support4 SATA port,4HDD of 3T ,2 USB2.0 port for operation of mouse control, back up, burning and upgrade;

13. Others:Completed protective circuit, unique treble watchdog function, make device never crashed; special "black-box" technology to monitor the device process, greatly reduce the maintenance cost

Model	AP-8032C
Main processor	Hi3531
Operating system	Embedded LINUX operating system
System resource	Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Operation interface	16bit real color GUI interface support mouse operation
Display screen	1/4/8/9/16/24/32
Video standard	PAL(625lines,50fps);NTSC(525lines,60fps)
Image encode	H.264(Main Profile)
Monitor quality	Monitor:D1;VGA\HDMI:High definition(Max 1920*1080)
Playback quality	D1/HD1/CIF/QCIF
Encode capability	8ch D1 & 24ch CIF
Decode capability	8CH D1 & 8ch CIF
Motion detection	Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
Audio compression	G711A
Bidirectional talk	support
Record mode	manual>alarm>motion detection>timing
Local playback	1-16ch playback
Video search	time\date\event\channel search
Space occupation	Video:CIF 4~5G/daychannel, D1 16~20G/daychannel,960H 24~30G/daychannel;audio:691.2M/daychannel
Video storage	Local HDD \Network
Back up mode	Network backup\USB portable HDD\USB imprint\SATA imprint
Video input	16ch BNC(1.0Vp-p,75Ω)
Video output	2ch BNC (1.0Vp-p,75Ω)( including 1ch Spot output),1ch VGA,1ch HDMI
Loop output	optional
Audio input	16ch RCA(200-2800mV,30KΩ)
Audio input	1ch RCA(200-3000mV,5KΩ)
Alarm input	8ch
Alarm output	1ch
Network port	RJ45 10M/100M/1000M self-adaptive Ethernet port
PTZ control	1 RS485;support multi kinds of PTZ protocol
USB port	2*USB2.0(one of them is multiplexing with what at the back panel)
HDD port	4 SATA ports(each max to 3TB)
Wireless port	3G\WIFI(extension via USB port)
Power	DVR professional ATX power
Consumption	<45W(not including HDD)
Temperature	0℃-+55℃
Humidity	10%-90%
Atmosphere pressure	86kpa-106kpa
