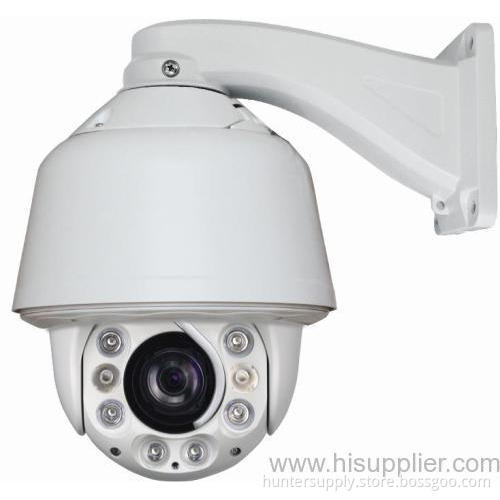

1.3mp Ir High Speed Dome Ip Security Cameras

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product : 1.3MP IR IP Security Cameras

1.3MPIRhighspeeddomeIPsecuritycameras

4.7mm ~ 94.0mm(20x)optical zoom

H.264 dual-stream video compression

Max 25/30fps@960p resolution
WDR(DWDR), Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC

Support P2P penetration\Mobile phone push alarm function

Multiple network monitoring: Web viewer, CMS & Mobile

Max 240°/s pan speed, 360° endless pan rotation

Up to 255 presets, 8 auto scan, 8 tour, 5 pattern

IR LEDs up to 120m

With aluminium wiper,Aviod dust, ensure that the image is clear

IP 66, -35~55°C, DC12V
Support ONVIF
Support mobile remote viewing .
1.3MPIRhighspeeddomeIPsecuritycameras

AP-IR-P960H
Camera
Image Sensor	1/3"1.3MegapixelSony CMOS
Effective Pixels	960(H)x1280(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/100~1/200,000s
Min. Illumination	0.5 lx (F1.6,50 IRE,ICR OFF),0.095 lx(F1.6,50 IRE,ICR ON
Camera Features
Max. IR LEDs Length	120m
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	Auto
WDR	Support
White Balance	Auto
Gain Control	Auto/Manual
Noise Reduction	2D/3D
Privacy Masking	Up to 5 areas
Lens
Focal Length	4.7mm ~ 94.0mm(20x Optical zoom)
Max Aperture	F1.6 ~ F3.5
Focus Control	Auto / Manual
Iris control	Auto / Manual
Angle of View	H: 55.2°~3.2°
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -5° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.01° ~120° /s; Tilt: 0.01° ~100° /s
Preset Speed	Pan: 240° /s; Tilt: 200° /s
	PELCO_P\PELCO_D
Preset point	256PCS
Cruise scan	8 groups, 32pcs preset each group
Auto scan	8 groups,Left and right boundary can be set, the scanning speed can be set
Pattern scan	4PCS, Max 500pcs order or 30mins each group
Wiper function	Support
Video
Compression	H.264
Resolution	960P(960×1280) / 720P(1280×720) / SVGA(800×600)
Frame Rate	960P/ 720P / SVGA (1 ~ 25/30fps) Main Stream
Frame Rate	D1 / CIF / QCIF (1 ~ 25/30fps) Sub Stream
Bit Rate	16K ~ 8192Kbps
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
ONVIF	ONVIF Ver. 2.0
Max. User Access	10 users
Smart Phone	iPhone, iPad, Android
General
Power Supply	DC12V, 3A
Power Consumption	<50W
Working Environment	-35°C~+55°C, 10%~85%
Dimensions	W210*H304
Weight	5.8Kg
