led double sided pcb

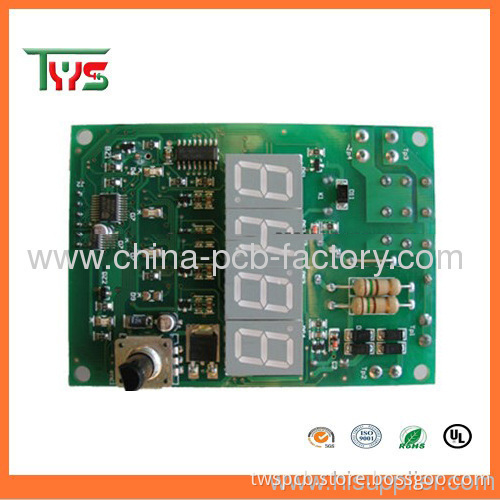

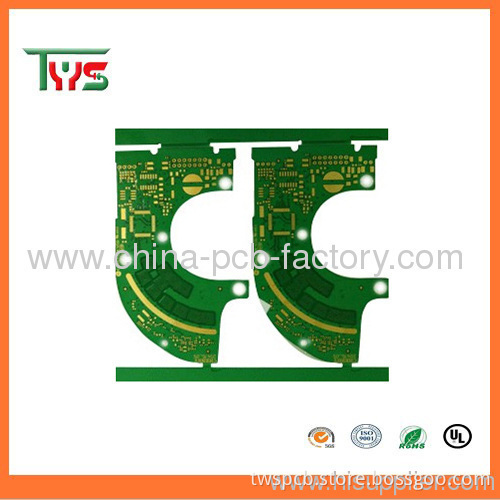

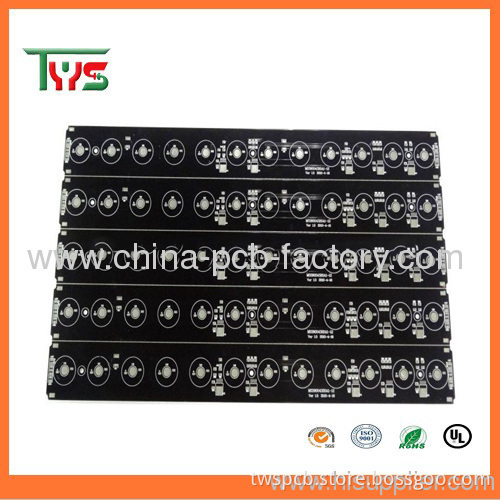

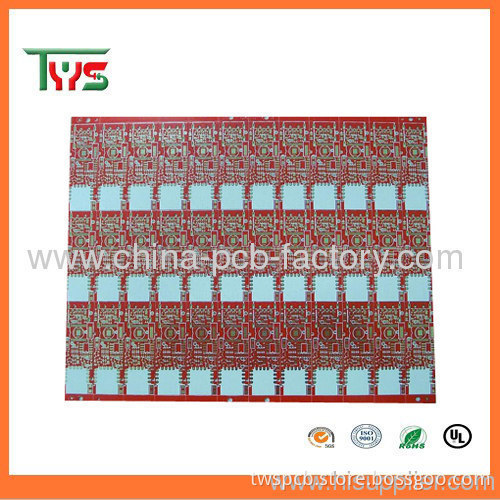

LED DOUBLE SIDES PCB
1.Single,double Layer PCB
2.MultilayerPCB/HDI PCB (4L to 28Layers)
3.FlexiblePCB/Rigid Flexible PCB (single, double and 4Layers)
4.AluminumPCB
5.Componentssourcing and purchasing
7.6.FinalPCB and FPC assembly: SMT & PTH & BGA
8.Customclearance for material importing and product exporting
9.Test:AOI, In-Circuit Test (ICT), Functional Test (FCT)
Advantage
1.Automatedequipments to reduce the cost,
2.Our pricesare very competitive and quality is super
3.Fastaction/24hours quotation
4.Quickprototyping and production
5.Steadyand safe delivery to Russia by EMS, air or sea.
Major PCB parameters below canall be customised:
1) Layers, size,thickness
2) Base material :FR4,CEM3
3) Solder mask: Red,Green,Yellow,Blue or others
4) Characters:White(default)or others
5) Surface technique: Tinsoldering, plating gold, immersion gold,OSP
If you need to get a formal quoation,please providethe spec as below:
PCB files ingerber file, .pcb or .pcb doc formart ,specification and BOM
PCB Capacity
PCB Capacity
|
technologyproject
|
making ability and technologystandard
|
|
Certificate
|
UL, RoHS, SGS
|
|
Surface Finishing
|
Plating Nickel and immersion Gold, Hot Air (HASL), HASL Lead Free,OSP, Immersion Tin
|
|
Max.panel size
|
600mm*700mm
|
|
Min.panel size
|
5mm*5mm
|
|
Boardwarpage
|
single side<=1.0%
double side<=0.6%
multi-layer<=0.6%
|
|
Min.Thickness
|
0.2mm±0.08mm
|
|
Min.Line width
|
HASL board 0.07mm±20%(2mil±20%)
|
|
Min.line space
|
immersion Gold 0.075mm±20%(2mil±20%)
|
|
copperfoil to board sidespacing
|
0.5mm
|
|
hole sideto linesidespacing
|
0.3mm
|
|
Min hole size
|
0.2mm
|
|
copper thinckness of Hole
|
20-35um
|
|
Tooling hole tolerance
|
±0.076mm
|
|
Min.stamping round hole diameter
|
FR-4 board thinckness 1.0mm(40mil)under 1.0mm(40mil)
|
|
Min.stamping round hole diameter
|
FR-4 board thinckness1.2-3.0mm(47mil-120mil)1.5mm(59mil)
|
|
Min.stamping square hole specification
|
FR-4.CEM-3 board thinckness 1.0mm(40mil) under 0.8mm x0.8mm(31.5mil x 31.5mil)
|
|
Min.stamping square hole specification
|
FR-4.CEM-3 board thinckness 1.2mm - 3.0mm(47mil-120mil) 1.0mm x1.0mm(40mil x 40mil)
|
|
tracedeviation
|
±0.076mm(±3mil)
|
|
Molding size tolerancelimit
|
CNC milling profile ±0.15mm(±6mil); die profile±0.15mm(±6mil)
|
|
V-CUT registration accuracy
|
±0.2mm(±8mil)
|
|
producttype
|
single sidedouble side multi-layer and flexibleboard
|
|
Base Material
|
FR-4,CEM-1, CEM-3, High frequency, aluminium basedboard
|
|
processthinckness
|
0.2-3.5mm
|
|
base materialcopperthinckness
|
18um, 35um, 70um, 105 um
|
|
Min.hold diameter
|
0.2mm
|
|
platingthinckness
|
plating gold Ni2.5-5um, Au0.05-0.10um
|
|
platingthinckness
|
immersion gold Ni5-8um, Au0.08-0.12um
|
|
platingthinckness
|
finger gold Ni2.5-5um, Au0.05-0.12um
|
|
processability
|
20000 square meters/month
|
|
profileprocess
|
die CNC machine
|
|
V-CUT horntolerance
|
±5°
|
|
V-CUT board materialthinckness
|
0.6mm - 3.2mm (15.5mil - 129.58mil)
|
|
Min.SMD space
|
0.3mm (12mil)
|
|
Min.component markingfont
|
0.15mm (5.79mil)
|
|
Min. single side solder annular width(production)
|
0.15mm (5.79mil)
|
|
Min. cross-hatchingpad
|
0.076mm (0.3mil)
|
|
Min.soldermask brigde
|
±0.076mm(±3mil)
|
|
Carbonink board making data
|
1)1.0 high impedance control limit:20K±10%
|
|
2)2.0 hardness:6H
|
|
|
3)3.0 can bear friction time:over 200000
|
PCBA assemblecapability
|
Quantity
|
Prototype&LowVolume PCB Assembly,from 1 Board to 250,is specialty,or up to1000
|
|
Typeof Assembly
|
SMT,Thru-hole
|
|
SolderType
|
WaterSoluble Solder Paste,Leaded and Lead-Free
|
|
Components
|
PassiveDown to 0201 size
BGAand VFBGA
LeadlessChip Carriers/CSP
Double-sidedSMT Assembly
FinePitch to 0.8mils
BGARepair and Reball
PartRemoval and Replacement
|
|
BareBoard Size
|
Smallest:0.25*0.25inches
Largest:20*20inches
|
|
FileFormate
|
Billof Materials
Gerberfiles
Pick-N-Placefile
|
|
Typesof Service
|
Turn-key,partialturn-key or consignment
|
|
Componentpackaging
|
CutTape,Tube,Reels,Loose Parts
|
|
TurnTime
|
Sameday service to 15 days service
|
|
Testing
|
FlyingProbe Test,X-ray Inspection AOI Test
|
