80w Led Street Lighting For Highway

This 80w led street lighting for highway is our classic item, and supplied a lot to government projects in China, also exported in large quantity.

Model No.: SW-SL002-W80
Power: 80w
80w to 120w can be made with this design
Working voltage: AC85-265V
Lumens: over 8000LM
LED chipset: BridgeLux
Protection grade: IP65

----------In fact, led chip brand is important, but the technology and materials for encapsulation is much more important; we are using INTEMATIX phosphor & SHIN-ETSU silica gel for encapsulation, and 1.2 golden wire & pure copper fixtures, the performance will be very stable, and the lumens decays are very slow.



Specifications of this 80w led street lighting for highway:

ITEM:	SW-SL002-W80
Input Voltage:	85-265V
Frequence Range:	50-60Hz
Power Factor:	>0.97
LED working Voltage:	DC30~34V
LED quantity:	2 pieces 40w COB led array
Led Consumpution:	80w
Total System Consumpution:	87w
Led Luminous:	100-110Lm/w
Led Initial Flux:	>8000Lm
Color Temperature:	Warm white(2700-3500K), Pure white(4000-5500k), Cool White(6000-7000K)
Color Rendering Index:	Ra>78
Beam angle:	120 °
LED Junction temperature:	<50°C
Working Temperature:	-40 °C ~+55 °C
Working Life-span:	50000hours
Certificates:	CE(EMC, LVD), RoHS, FCC, IP65
Gross weight:	12KGS
Packing size:	74*22*39CM

Certificates available for this 80w led street lighting for highway:
CE, EMC, LVD, FCC, RoHS, IP65

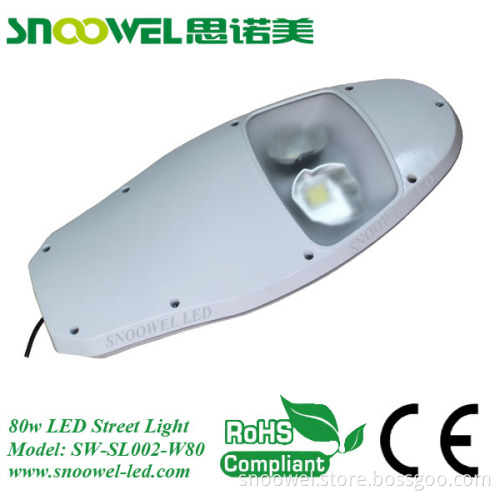

Pictures for reference:
