Product Description
Product Description
Product name :10W Led flood lights
Model No.:SW-FL001-W10
Lamp size for 10w led mini flood lights:
Light distribution curve of led mini flood lights:

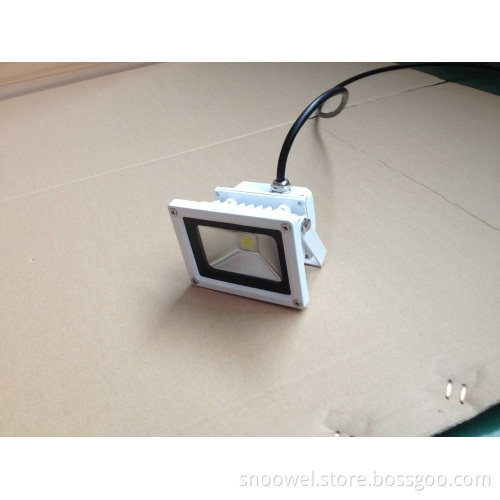

Product pictures of this mini led flood lights:

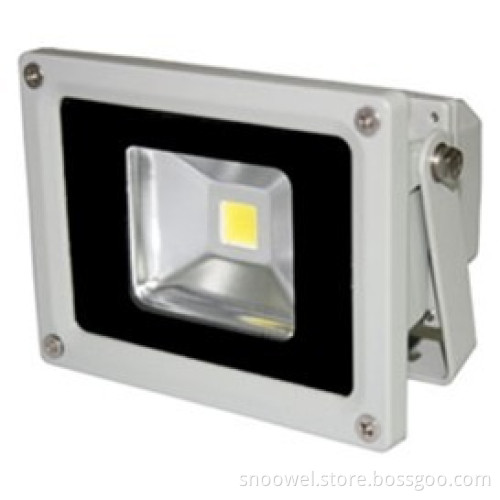

grey shell(120degree):
black shell(120degree):
View angle of 60degree:
Application of this 10watt led flood lights:
Widely used in Factories, Air Ports, Gymnasiums, Yards, Advertising boards, Buildings, Lawns, Gardens, etc.
Model No.:SW-FL001-W10
Main Point:
Input voltage:AC100-240V/ DC12V / DC24V
Led chip: Bridgelux fm USA
LED Lumen:100-110Lm/W
IP grade:IP65
Beam angle: 60 or 120degree
Shell color: black or grey
Working life:>50000hours
Technical datas of 10w led flood lighting:
Power |
10W |
Led consumption |
11.5W |
LED Qty |
1pc |
Input Voltage |
AC100-240V /DC12V/ DC24V |
Frequency range |
50-60Hz |
Power factor |
≥97 |
Lamp efficiency |
85%-90% |
Working voltage |
DC30-36V |
Illuminance uniformity |
>0.7 |
Color Temperature |
2700-4000K/4000-6000/6000-7000K |
Color Rendering Index |
>70-80Ra |
Led luminous efficiency |
100-110lm/w |
Working Environment |
Working temperature:-40°C~+55°C |
Working humidity:10%-90% | |
IP Rating |
IP65 |
Power line |
0.75mm2 |
Connect wire |
L |
N | |
G | |
Working Life |
>50,000 hours |
Body &Shade Material |
Aluminum alloy |
Certificates |
CE & RoHS |
Lamp packing |
130*120*110mm |
Lamp weight: N.W./G.W |
0.64/1.1KG |
Warranty |
3 years |
Lamp size for 10w led mini flood lights:
Light distribution curve of led mini flood lights:
Products features of this 10w led flood lighting :
1. Bridgelux chip integrated encapsulated high power LED ranges from 10-100W, which makes 100-110lm/W, with low lumens depreciation and good heat dissipation.
2. Aluminium alloy die-cast baking varnish heat sink, clear tempered glass, ensures good heat dissipation. IP65, Corrosion proof, Dust proof, Water proof, Shake proof.
3. Aluminium reflector designed after professional light distribution analysis, brings out the best light effect.
4. Being lighted up within 3 seconds with high CRI(color rendering index). Multiple-color for customers to choose: Red, Green, Blue, Yellow, White.
2. Aluminium alloy die-cast baking varnish heat sink, clear tempered glass, ensures good heat dissipation. IP65, Corrosion proof, Dust proof, Water proof, Shake proof.
3. Aluminium reflector designed after professional light distribution analysis, brings out the best light effect.
4. Being lighted up within 3 seconds with high CRI(color rendering index). Multiple-color for customers to choose: Red, Green, Blue, Yellow, White.
Product pictures of this mini led flood lights:
grey shell(120degree):
black shell(120degree):
View angle of 60degree:
Application of this 10watt led flood lights:
Widely used in Factories, Air Ports, Gymnasiums, Yards, Advertising boards, Buildings, Lawns, Gardens, etc.
SNOOWEL is a factory with 9 year's experience, and we exported the 10w led flood lighting to Japan, Europe, North America, Australia, ect, in very large quantity.
We offer the 10w mini led flood lights in top quality and competitive price,we believe you will never disappointed on our products and service.Please contact us freely to get more infos about us,we will always be here for you.
