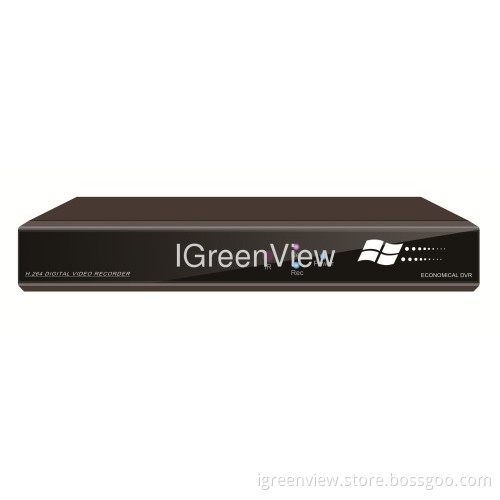

4 channel Standalone DVRs---IGV-7004

Feature:

Standard H.264 compression

4 CH Hybrid video input, D1 real-time recording

Audio: 1-ch input / RCA: 1-ch output

Support mobile phone viewer (Windows Mobile/Symbian/iPhone/ Android/BlackBerry)

Support multiple DDNS (Oray, 3322, DynDNS)

Support 1*2TB HDD

Specifications:

Main Processor	High Performance Embedded Microprocessor
Operation System	Embedded Linux OS
Signal System	PAL/NTSC
System Resource	Recording, Playback, Remote Access
Operation Interface	Mouse, Front Panel, Remote Control
Video Split	1 / 4 Split Display
Video Resolution	D1
Video Playback Resolution	CIF/D1
Bit rate Control	Dual stream
Image Control	6 Levels
Recording Speed	PAL: 25fps/channel, NTSC: 30fps/channel
Motion Detection	Configurable detection areas (22 × 18 blocks) and Sensitivity
Audio Compression	G.711
Recording Priority	Manual > Alarm > Motion Detection > Schedule
Local Playback	4 channel synchronous playback
Playback Search	Date, Time, Event, Channel
Video Storage	Local HDD, USB HDD, Network
Backup Mode	Local HDD, USB HDD, Network
Video Input	4 channel BNC
Video Output	1 channel BNC, 1 channel VGA (800×600 1024×768 1280x1024 optional)
Audio Input	1 channel RCA
Audio Output	1 channel RCA
Ethernet Interface	RJ4510M/100M Base-TX
PTZ Interface	1 x RS485
USB Interface	2 x USB2.0
HDD/SATA Interface	1 x SATA
Power Supply	DC12V±10%
Power Consumption	<15W (HDD not included)
Working Temperature	-10℃~ +55℃
Working Humidity	10%~90% RH
Atmosphere Pressure	86kpa~106kpa
Dimensions	230(L) x 260(W) x40(H)mm
Weight	1.06Kg (HDD not included)

4 channel Standalone DVRs
