Car Reverse Camera For Vehicle Security System

Car Surveillance Cameras  IGV-CAR61

Main Features :
● 540TVL bus camera with 12 LEDs;
● 2.8/3.6/6mm Lens optional;

This is a high quality Infrared Color Camera designed for Car and Bus. Using the latest CCD technology, the camera can produce high resolution with little distortion in dim environment. The camera has a wide operation temperature range and is not subject to distortion from magnetic field. With its lightweight and compact size, this camera can be used for monitoring and surveillance.

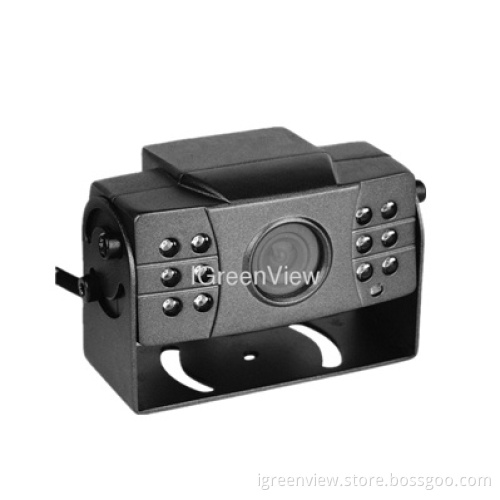

Vehicle Surveillance camera IGV-CAR61 Picture (Mounted cars in the UK):


Vehicle Surveillance camera IGV-CAR61 Specification:

Model	IGV-CAR61HR	IGV-CAR61LR
Image Sensor	1/3" Color Sony Color CCD
Picture Elements	752H*582V
Horizontal Resolution	540 TVL	420TVL
Sensitivity	0 Lux (Infrared LED On)
Scanning System	625TVL/2:1 Interlace
Synchronization	Internal
Infrared Spectrum	850nm
S/N Ratio	More than 50 dB, (AGC Off)
Auto Gain Control (AGC)	Auto
White Balance	Auto
Electronic Shutter	Auto
Back Light Compensation	Auto
Infrared LED	12 LEDs
Infrared LED Range	10M
Video Output	Molex Terminals x1
Audio Output	Molex Terminals x1
Gamma Ratio	0.45
Lens	2.8/3.6/6mm Lens optional
Exterior Focus Adjustment	N/A
Power Supply	12V DC ±10%
Power Consumption	190mA

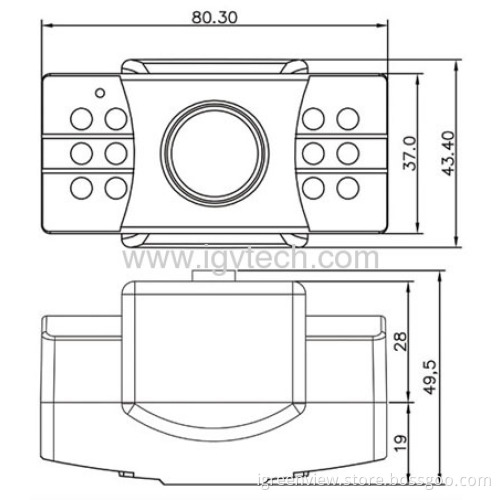

Dimensions (L X W X H)	91*47*57.5 mm
Net Weight	242g
Operating Temperature	-10°C to +50°C
