360 ° Fish-eye Panoramic View of 2.0Mega Pixels IP Dome Camera Main Features:

● 2.0 Mega Pixel 360 ° Fish-eye Panoramic View IP Camera

● H.264/MJPEG Compression

● Built-in 360-degree Fish-eye Lens

● Up to 9 different image viewing mode

● Day & Night mode switching function (With mechanical IR Cut Filter)

● e-PTZ preset, fixed high-end features such as cruise

● Support POE

● Supports Two-way voice

● Support Micro SD card local storage

● Suitable for Building Lobby, Entrance and Exit, Elevator, Conference room, Classrooms, Restaurants, Car ● park, Industrial buildings, shopping malls, etc

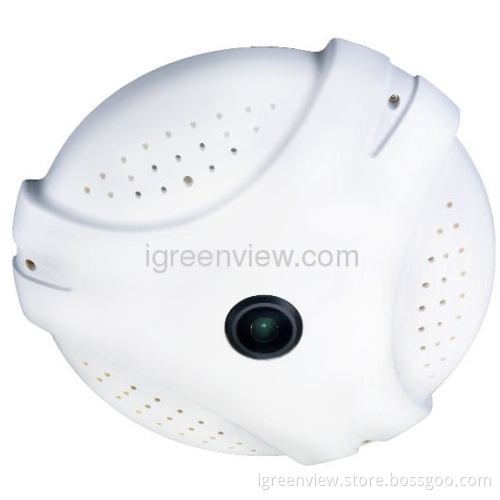

360 ° Fish-eye cctv camera picture:

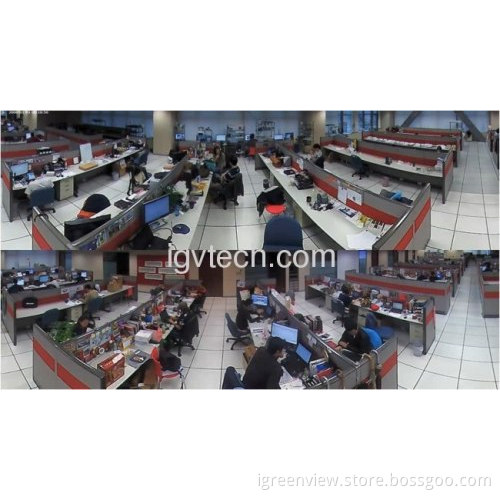

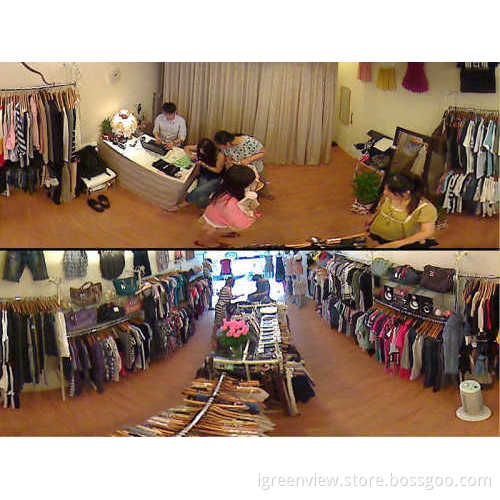

360 ° Fish-eye Panoramic View Camera in shop:

(180 broad view)
360 ° Fish-eye Panoramic View of 2.0Mega Pixels IP Dome Camera

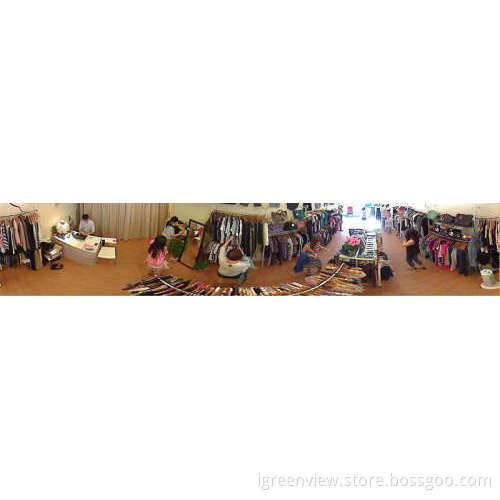

(360 broad view)

360 °fish-eye Panoramic View Camera Specification:

MODEL		IGV-FV360
Video Compression		H.264 / Motion JPEG
Video Resolution		2M: 1600x1200
Image Layout		Source image, borad view, double borad view, triple view, quad view
Bit Rate		2M ~ 6Mbps (CBR/VBR configurable)
Frame Rate		15 FPS @ 1600x1200
Image Device		Color CMOS Sensor
Lens Type		Fish-Eye Lens, FOV=185° (D/H/V),F=2.0mm, f=1.25mm
Day/Night function		Mechanical IR cut filter
Video Control		Controllable frame/bit-rate(bandwidth), VBR/CBR control, Backlight compensation
Image Adjustment		Brightness, Saturation, Sharpness, Exposure , White balance control
Event System	Trigger	motion detecton
	Action	file upload via FTP, e-mail and Micro SD card Notification via e-mail
Local storage		Micro SD card (not included) , support SDHC, schedule recording, full over-write
Network Interface		10BASE-T/100 BASE-TX
PoE		IEEE802.03
System Requirement		CPU: Intel Pentium D Processor RAM: 1GB Graphic Card: 256MB
Protocols		HTTP,HTTPS, TCP/ IP,IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP,RTSP, RTP, Bonjour, UPnP
Audio Capability		1x line in, 1x line out, built-in microphone
Audio Compression		u-Law PCM 8Khz
Power Supply		AC/DC switching power adapter, input: AC100 ~240V, output: DC 12V/2A
Security		Password Protection , Https encryption , User accesslog
Power Consumption		5W
Operation Temperature		0°C ~ 50°C
Operation Humidity		20% ~ 80% RH
Dimension ( x H)		180 * 55 mm
Net Weight		380g
Platform		Microsoft Windows 2000 / XP/ Vista
Browser		IE 7.0 above
Certification Report		CE/FCC, ROHS,WEEE
I/O Connectors		1x RJ45 10BASE-T/100 BASE-TX 1x DC jack 1x Audio line out/1x audio line in 1x Micro SD slot 1x Default setting button 1x I/O Terminal connector; 4x DI/1x DO
Package Contents		1 x CD (User's manual and software) 1x Quick Installation Guide 1xInstallation Bracket 1xWarranty Card 1xScrew Pack

Fish-eye lens panoramic camera applications:
360 ° Fish-eye Panoramic View of 2.0Mega Pixels IP Dome Camera
