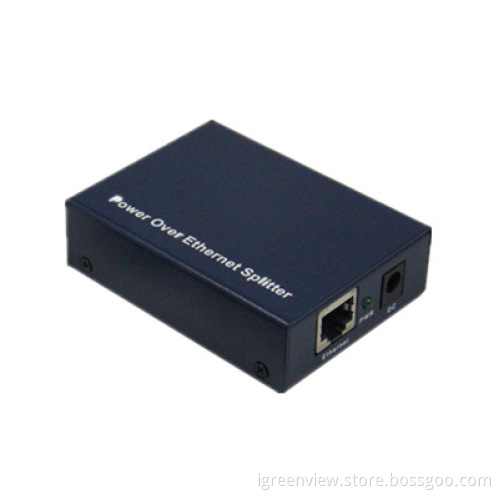

Standard Poe Splitter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Standard Poe splitter IGV-POE-O3 Features:

• Reduced Installation cost
• 10/ 100/ 1000 Mbps supported
• With IEEE802.3at supported
• Fully IEEE802.3af compliant
• Lighting-proof and Compact design
• Plug & Play. No configuration required

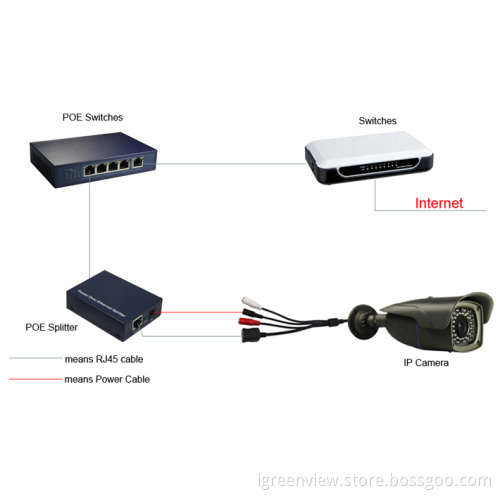

Standard Poe splitter IGV-POE-O3 Connection Diagram:

Standard Poe splitter IGV-POE-O3 Specification:

Features	Separate data and power coming over a network cable for a network video product without built- in PoE support
Data rate	10/ 100/ 1000 Mbps
Input Power	25. 4W Max
Output Power	IEEE802. 3af DC5V( 2A) , DC12V ( 1A ) , DC24V ( 0. 5A) IEEE802. 3at, DC5V( 2A) , DC12V ( 2A ) , DC24V ( 1A)
Wiring	Extracts power from either data pair ( 12/36) or spare pair ( 45/78) .
LED display	YES
Operating temperature	0–40°C( 32–104°F)Humidity max. 90% RH ( non- condensing
Dimension	80×58×22mm(H×D×W)
Weight	145g
