1080P IP PTZ Dome Camera IGV-PTZ310-H Features:

●4.7mm ~ 94.0mm(20x)optical zoom
● H.264 & MJPEG dual-stream encoding
● Max resolution(1080P IP PTZ Dome Camera)
● WDR(DWDR), Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
● Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
● Max 400 °/s pan speed, 360° endless pan rotation
● Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
● Built-in 7/2 alarm in/out
● Support intelligent 3D positioning with DH-SD protocol
● Micro SD memory, IP67, easy installation

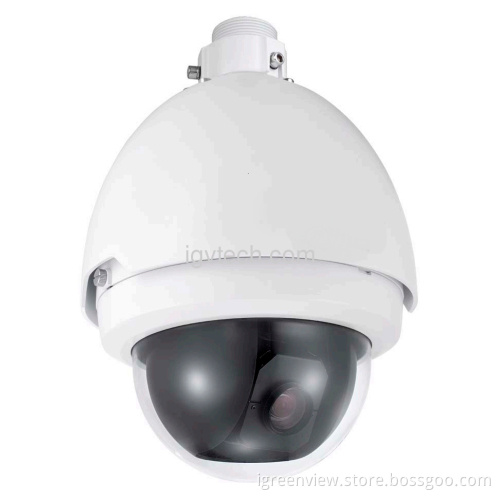

1080P IP PTZ Dome Camera IGV-PTZ310-H Picture:

1080P IP PTZ Dome Camera IGV-PTZ310-H Specification:

Image Sensor		1/3" Exmor CMOS
Effective Pixels		1944(H) x 1092(V), 2 Megapixels
Scanning System		Progressive
Electronic Shutter Speed		1/1 ~ 1/10,000s	1/1 ~ 1/30,000s
Min. Illumination		Color:0.5 lux&F1.6 B/W: 0.095 lux&F1.6	Color: 0.05Lux&F1.6 B/W: 0.005Lux&F1.6
S/N Ratio		More than 50dB
Video Output		BNC(1.0Vp-p/75Ω), PAL / NTSC
Day/Night		Auto(ICR) / Color / B/W
Backlight Compensation		BLC / HLC / WDR	BLC / HLC / DWDR (Digital WDR)
White Balance		Auto, ATW, Indoor, Outdoor, Manual
Gain Control		Auto / Manual
Noise Reduction		2D / 3D
Privacy Masking		Up to 24 areas
Digital Zoom		12x	16x
Lens
Focal Length		4.7mm ~ 94.0mm(20x Optical zoom)
Max Aperture		F1.6 ~ F3.5
Focus Control		Auto / Manual
Angle of View		H: 58.2° ~ 2.9°	H: 55.4°~ 2.9°
Close Focus Distance		10mm ~ 800mm	10mm ~ 1000mm
PTZ
Pan/Tilt Range		Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed		Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~250°/s
Preset Speed		Pan: 400°/s; Tilt: 300°/s
Preset		80(DH-SD), 255(Pelco-P/D)
PTZ Mode		5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup		Human-oriented focal length/ speed adaptation
Power up Action		Auto restore to previous PTZ and lens status after power failure
Idle Motion		Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Time Task		Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
Protocol		DH-SD, Pelco-P/D (Auto recognition)
Video
Compression		H.264 / MJPEG
Resolution		1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate	Main Stream	1080P/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Ethernet		RJ-45 (10/100Base-T)
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
*ONVIF*		*ONVIF Ver. 2.0 conformance*
Max. User Access		20 users
*Smart Phone*		*iPhone, iPad, Android, Windows Phone*
*Memory Slot*		*Micro SD, Max 32GB*
RS485		1
Alarm		7/2 channel In/Out
Power Supply		AC 24V/3A (±10%)
Power Consumption		15W, 25W(Heater on)
Working Environment		-40ºC ~ 60ºC / Less than 90% RH
Protection Level		IP67, IK10 optional
Dimensions		Φ222(mm) x 322(mm)
Weight		5.0kg
