Ptz Keyboard Support Pelco Matrix.
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
PTZ keyboard IGV-KB20 Features:
● Support PELCO matrix.
● Support 4 keyboards linkage, each keyboard can support 32 domes at most.
● Expediently and comfortably use according to ergonomics design
● LCD with back-light can display command menu, protocol, current camera ID, output display ID and joystick status.
● Three axis joystick can control speed of pan/ tilt and zoom in/out; Two axis joystick can control speed of pan/ tilt.
● Built-in multi-protocol such as Pelco_P\Pelco_D\VIDO_B02\Pelco matrix and so on; Baud rate can be selected.
● Support all shortcut key of dome to handle.
PTZ keyboard IGV-KB20 Specification:

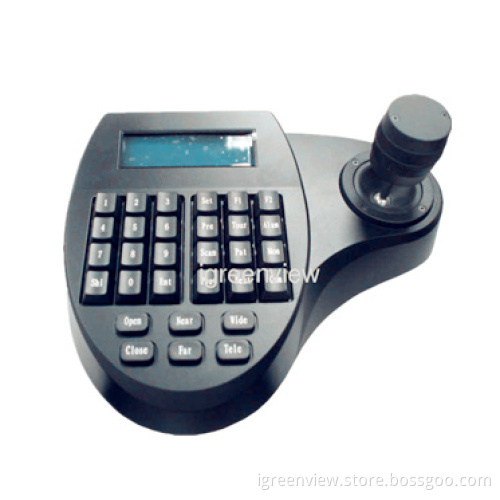

PTZ keyboard IGV-KB20 Picture:
Model |
IGV-KB20 |
Power |
Power supply: 9V-12V AC/DC |
Power consumption: 5W | |
Physics |
Dimension: 218*180*98(mm) |
Net weight: 650g Gross weight: 1220g | |
Environment |
Temperature: 0℃~+50℃ |
Humidity: 0~95%(Non-condensation) | |
Communication |
Type of connection: Six plugs & RJ45 |
Type of interface: RS-485/422 | |
Baud rate: 2400/4800/9600/19200 bps | |
Transmitting distance:1200m(0.5mm twisted pair calbe) | |
Gross Weight |
1.2Kg |
PTZ keyboard IGV-KB20 Picture:
