2.0 Mega-pixel Hd-sdi Mini High Speed Dome Camera

HD-SDI Mini high speed dome camera IGV-SDI84 Features:

● Integrated structure,convenient and fast installation
● Built-in heater and radiating system,4 alarms input, 1 alarm output as factory default,IP board is optional
● Built-in 36 x zoom (3x optical, 12x digital)
● 50%, High Sensitivity Mode: 0.25 lx (F1.2, ICR off); 0.03 lx (F1.2, ICR on) 50% Normal Mode: 1.0 lx (F1.2, ICR off); 0.1 lx (F1.2, ICR on)
● Signal System:1080p/25, 1080i/60 (30 PsF), 1080i/50 (25 PsF) 720p/60, 720p/50, 720p/30, 720p/25
● 128 presets(titles can be set), 4 tours; 8 programmable zones(titles can be set); 4 pattern, each record time is more than 180 seconds;4 scan, support camera scanning repeatly between right limit and left limit at an appointed speed.
● All-in-one, highly compact camera ideal for demanding applications such as video surveillance, public transportation, sports, videoconferencing and more
● Park action function, can auto-call presets or start-up tour, pattern, scan and display areas after dome is idle for a period of time.
● Screen will display pan/ tilt position, zoom etc.
● IP66 all-day defend cover.
● Built-in TVS1500W lightning-proof, surge-proof and wave-proof.

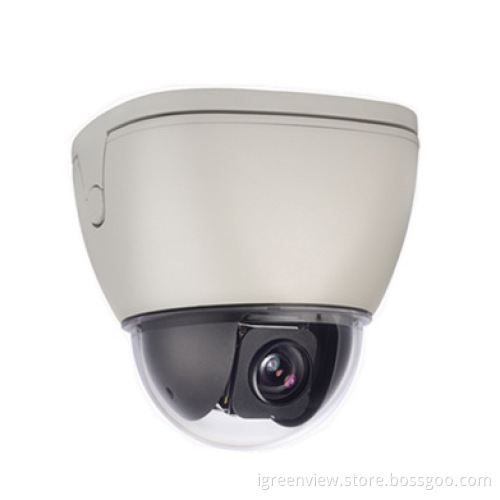

HD-SDI Mini high speed dome camera IGV-SDI84 Picture:


Specification:

Supported module	Sony FCBSE600
Scanning system	2:1 interlacing
Effective Pixels	Approximately 3.27 Megapixels
Imaging element	1/3 HD CMOS
White balance	Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Va por Lamp (Fix/Auto), One-push, Manual
Back-compensation	Off/auto
Focus	f=3.0 mm (wide) to 9.0 mm (tele) F1.2 to F2.1
Electron Shutter	1/1 to 1/10,000 s, total 22 steps
Privacy masking zones	Yes, Spherical
Manual speed	Pan(0.5°~160°/s)
	Tilt(0.5°~90°/s)
Preset speed	320°/s
Rotation	Continuously 360°;tilt 0~90° with auto-flip
Speed Proportion	As the length of focus, to auto-adjust the speed
Preset	128 preset, title can be edited
Auto-flip	Tilt down 90°, with auto-flip 180°
Scan	355°programmable ,4 scans
Display zone	8 programmable zones with titles
Sync model	Internal
Decoder	Built-in
Video output	Female BNC
Remote controlling	RS485
Baud rate (RS485)	2400/4800/9600/19200 bps
ID range	1~254
Temperature	-30℃~+50℃
Humidity	0~95%(No condensation)
Protection grade	IP66, 1500w lightning-proof, surge-proof, all-day defend cover
Power supply	AC 24V
Power consumption	12 W

Remark:

Serial Digital Interface (SDI) is a standard for digital video transmission over coaxial cable - the same cable used for Analog security systems. This makes it easy to convert from Analog to SDI because you don't have to re-cable and you don't need networking knowledge to set up the system. HD-SDI has an advantage over Analog systems in that it supports high resolution cameras.

HD-SDI Camerascan be part of a hybrid Analog-SDI system. Analog cameras are used for locations where VGA resolution is adequate. HD-SDI Camerasare placed in important areas where you may need to zoom in to see faces, license plate numbers, or other detail. This makes for a cost-efficient surveillance system.
