Intelligent Face Recognition Camera Igv-fc01lp

Intelligent Face Recognition Camera Igv-fc01lp

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Intelligent Face Recognition Camera IGV-FC01LP Main Feature:

A , 7 intelligent video analysis functions
   1, multiple face detection / with monitoring / zoom in / video / network   transmission,
   2, the detection of multi-target / with the Supervisor / zoom / video / network transmission,
   3, the detection of objects left over / video / network transmission,
   4, the detection of electronic fence / video / network transmission,
   5, the detection of the warning area / video / network transmission,
   6, the traffic statistics of a specific direction detection / storage / network transmission

(Face Detection)

(Retrograde detection)

B,  face tracking, multi-object tracking, object loss intelligent monitoring functions into a single CCD / CMOS image processing platform without plug any MCU or other DSP, you can have a price of tens of thousands of high-end DVR is qualified intelligent monitoring functions

C, supports standard Pelco-D, Video output NTSC / PAL, can be no obstacle to integration into the existing device systems, real-time to enhance the existing system for intelligent monitoring systems, to reduce the burden of security personnel, and strengthen the security level

D, with wide dynamic image enhancement, longer high-contrast scenes, a good deal of the light and the dark of detail without losing any detail.

E, provide a general camera, D1 resolution DVR insurmountable obstacles, timely capture of 1.3 million high resolution photos stored in SD card, and may at any time through the RS-485 view enlarge or download to your computer

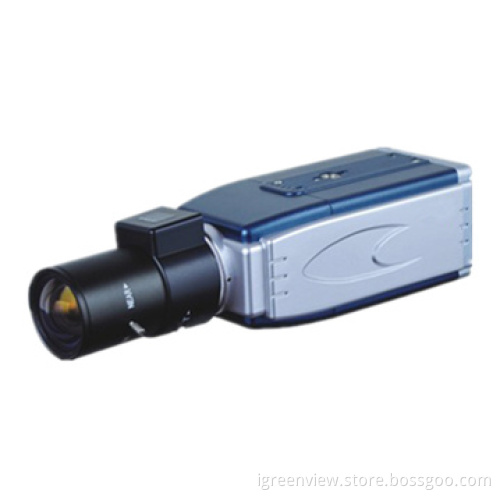

Intelligent Face Recognition Camera IGV-FC01LP Picture:

Intelligent Face Recognition Camera IGV-FC01LP Specification:

Image Sensor	1/3" Color D1 CCD sensor
Resolution	560TV Lines,D1 (720x480;720x576)
In addition to dead pixels	Static / dynamic 4096, Dynamic dead pixel compensation
Super-WDR	Automatic / manual, dual scan
Privacy Masking	Free to set the privacy mask area 16
Digital Zoom	1~8
Auto-Iris	Automatic iris control scale, in order to improve the brightness of light into
Face backlight compensation automatically	Specifically for the face to all parts of the picture brightens, to record the faces more clearly
Focus the image signal peak	Focus signal at any time, be provided to the microprocessor CPU 3 groups to perform auto focus motor control
Intelligent functions	Multi-target tracking, face tracking, hot zone warning, lost objects, objects left, traffic statistics, electronic fence
Preview mode	Following parameters: 1 to 16 privacy mask area set
System	Following parameters: language, menu settings, factory settings, system time, Jpeg quality, video systems, the mains frequency, GPIO 1 ~ 6 configuration, software updates, histogram
GPIO	Button
GPIO	Intelligent alarm output
RS-485	Secondary transmission network development package: for remote
	Intelligent alarm output and parameter settings
	SD card data storage (by date time grab a video)
	PTZ control (Pelco-D, Peloc-P) for local & remote
Micro-SD Card	8G/32G SDHC, faces and objects of local high-definition (D1) storage and playback
Jpeg encoder / decoder	Built-in
Web enabled real-time network transmission	IP-based two-way access under RS485 protocol transmit to remote PC via LAN/WALN/3G/2G
*Face Detection*	64 face of the mobile detection, tracking, zoom, storage, transmission
	Amplified by the number and relative position of the automatic calculation of the maximum magnification, the dynamic digital zoom (16 times)
	Following parameters: face sticky, sensitivity, automatic tracking zoom, save, capture size, Detection frame label, multi-color, line width, line transparency, face icon, face icon X / Y axis and color
	Face sticky
	Face capture, micro-SD card storage
Objects appear to detect	64 moving objects (multiple targets) detection, tracking, zoom, storage, transmission
	Amplified by the relative position of objects and automatically calcu late the maximum magnification, the dynamic digital zoom (16 times)
	Following parameters: sensitivity, the target minimum number of paintings, path line, save, move distance, elapsed time, track mode
	Objects sticky
	Object capture, micro-SD card storage
Loss of detection of objects	16 lost object of detection, storage, transmission
Detect objects left	16 objects left over from the detection, storage, transmission
Detect objects left	Following parameters: Clear warning, alarm seconds, the sensitivity, the object number of the smallest painting, save,Tracking mode, distance, time alarm is triggered
Electronic fence	4 electronic fence detection, storage, transmission
Electronic fence	Following parameters: Clear warning, alarm seconds, set the fence 1 to 4, the sensitivity, the minimum draw several objects, track lines, archiving, tracking mode, distance, elapsed time
Hot zone alert	8 of the hot zone warning detection, storage, transmission
Hot zone alert	Following parameters: number of seconds an alert, warning broad-line transparency, set warning zones 1 to 8, the sensitivity, the minimum draw a few objects, archiving, tracking mode, the time an alarm is triggered
*Traffic Statistics*	4 lines with direction of detection, traffic statistics, storage, transmission
*Traffic Statistics*	Following parameters: count to zero, the maximum count value, 1-4 to set the fence, sensitivity, minimal art object number, trajectory, archiving, tracking mode, distance, elapsed time
