3.5"vandalproof Ir Dome Camera With 2.8-10mm Manual Zoom Lens

3.5"vandalproof Ir Dome Camera With 2.8-10mm Manual Zoom Lens

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

3.5"Vandalproof IR Dome Camera IGV-VD14 Features:

● SONY/SHARP Color CCD optional(420TVL-700TVL)

● IR LED:36cs*￠5mm

● IR Range:30M

● Standard Match 2.8-10mm Manual Zoom Lens

● External lens adjusting

● 3-Axis Cable Built-in Bracket Suitable for Wall and Ceiling Installing

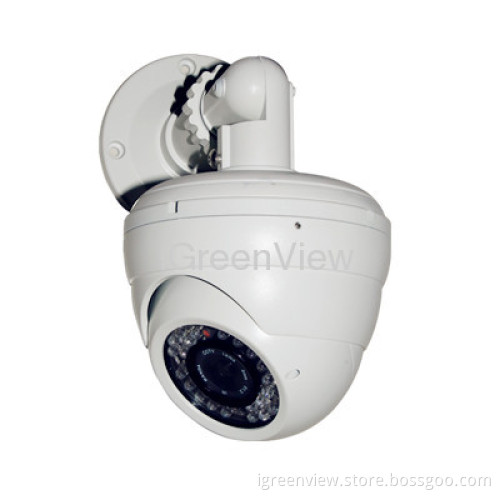

3.5"Vandalproof IR Dome Camera IGV-VD14 Picture:

3.5"Vandalproof IR Dome Camera IGV-VD14 Specification:

Module	IGV-VD14SLR	IGV-VD14SNR	IGV-VD14DAP	IGV-VD14HR	IGV-VD14EXR	IGV-VD14EFP
Image Sensor	1/4" Color SHARP CCD	1/3" Color SONY Super HAD CCD	1/3" Color i-View Tech Sensor	1/3" Color SONY Super HADⅡ CCD		1/3" Color SONY Super HADⅡ CCD
Signal System	PAL/NTSC
Effective Pixels	PAL:500(H)×582(V)		PAL:752(H)×582(V)			PAL:976(H)×582(V)
	NTSC:510(H)×492(V)		NTSC:768(H)×494(V)			NTSC:976(H)×494(V)
Resolution	420TVL		600TVL			700TVL
DAC	12Bit	9Bit	10Bit			12Bit
Minimum Illumination	0.5LUX/F1.2	0.1LUX/F1.2	0.1LUX/F1.2
S/N Ratio (Y signal)	Over 48dB		Over 58dB
Electronic Shutter Speed	1/50-1/60, 000sec.(PAL), 1/60-1/60, 000sec.(NTSC)
WDR	-	-	-	D-WDR	D-WDR	D-WDR
DNR	-	-	-	2D-DNR	3D-DNR	2D-DNR
OSD	-	-	OSD	OSD	OSD	OSD
White Balance	Auto White Balance		Auto White Balance/Manual White Balance/Auto Tracking White Balance
Gain Control	AUTO		Auto/Manual/Off
Backlight Compensation	ON		ON/OFF
Gamma Correction	0.45
Synchronization	Internal
Video Output	1.0Vp-p, 75Ω
Power Source	DC12V (9V ~ 15V)
Operating Temp.	-20℃~60℃ / 10% ~ 95%RH
