2012 New 690tvl Ultra Wdr Pixim Seawolf Cctv Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

690TVL Ultra WDR Pixim SEAWOLF CCTV Camera IGV-IR18PIXIM Main Features:

● Super WDR:102dB tytical,120dB Max

● Superior color rendition, efficient image compression, video rate adjustable, PAL/NTSC optional

● Internal/external sync, Freeze up, Electronic slow shutter, Motion detection, Privacy zones, mirror function, DSS,CRR, 3DNR,BLC

● 48Pcs IR Led, IR distance:40-50M

● Innovative and unique appearance, Zoom and Focus adjustable outside

● OSD menu, Auto ICR, IP67, Lightning-proof

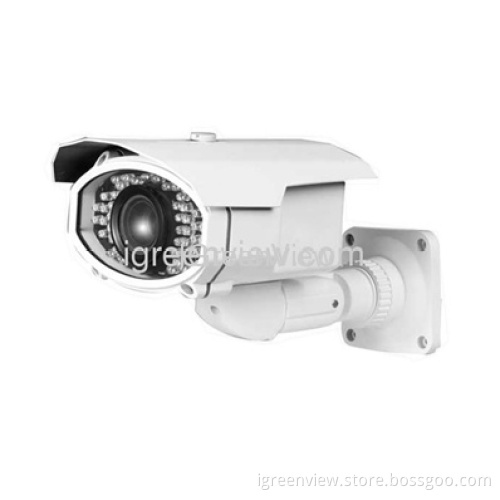

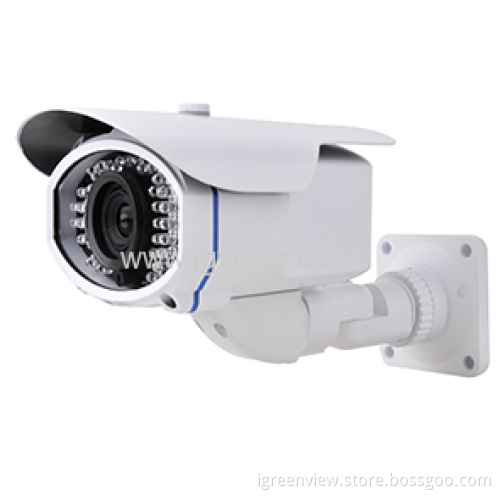

690TVL Ultra WDR Pixim SEAWOLF CCTV Camera IGV-IR18PIXIM picture:

690TVL Ultra WDR Pixim SEAWOLF CCTV Camera IGV-IR18PIXIM Specification:

Model	IGV-IR18PIXIM
Pick-up device	1/3" WDR Pixim Seawolf Sensor
Effective pixels	758*540
Pattern	PAL/NTSC compatible(menu optional)
Pixel size	7um*7um
Sync system	Internal/External
H/V resolution	H690TVL/V460TVL
Min illumination	0Lux
S/N ratio	more than 50dB(AGC OFF)
Lens	4-9mm Korean DC ICR lens(3.6-16mm Korean DC ICR/5-50mm Korean DC ICR Lens optional)
Electronic shutter	AUTO/OFF
WDR	High/Middle/Low/Custom
CRR	ON/OFF
BLC	ON/OFF
Exposure mode	ATM/Global/Normal/Lower1/3 /Manual
Electronic slow shutter	(64X/32X/16X/8X/4X/2X)/Off
Digital zoom	8 times
3D noise reduction	High/Low/Off
Mirror function	Horizontal/Vertical/Rotation/Off
Privacy zones	12 sets
Motion detection	4 sets
White balance	ATW/ATW PRO/PUSH LOCK/Manual
AGC	High/Middle/Low/Off
Image adjustment	Saturation/Sharpness
Image Freeze	On/Off
Day&Night	Auto/B/W/Color/EXT
Gamma	Adjustable
video rate	80-150
OSD menu	English/Chinese
IR distance	40-50M( IR Leds:48xΦ5)
Video output	1.0V p-p Composite Video Output, 75 Ohm
Power supply	DC12V+/-10%
Power consumption(Max)	200m/ 600mA(IR ON)
Operating temp	-20°C ~ 50°C
