Wireless Hd Network Ptz Dome Camera With 4x Optical Zoom
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
4X Optical Zoom IP PTZ Camera IGV-PTZ13-WIFI
Features:
• Dual stream encoding / H.264 compression mode
• 1/4-inch 1.0 Megapixel OV9712 CMOS, include 3-12mm 4X Zoom Lens
• HD 720P 1280*720 D1:640*480 CIF:320*240
• Support Multi-Screen software and CMS
• Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
• Pan: 360°/s Tilt:90°/s cruise 30°/s
• IP66, WiFi

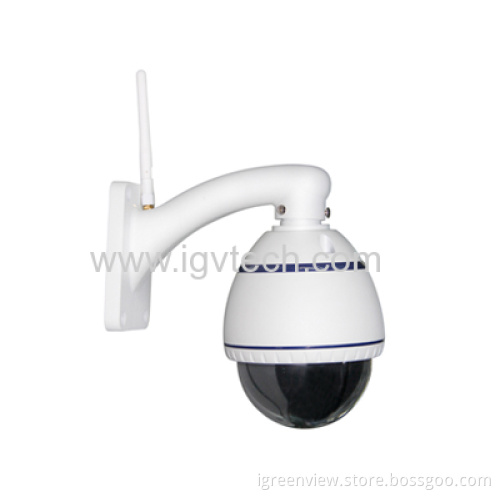

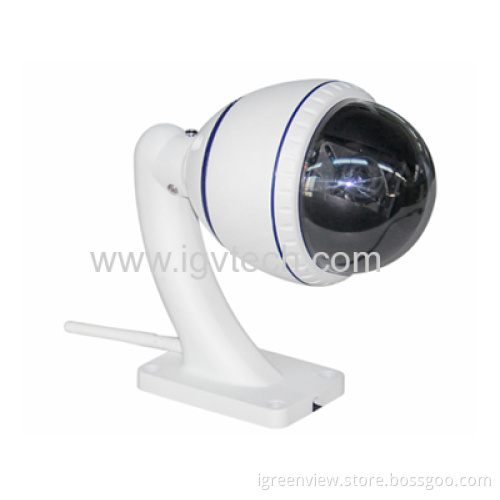

Picture:
Specifications:
| Model | IGV-PTZ13-WIFI | |||
| Camera | ||||
| Image Sensor | 1/4" Progressive Scan CMOS OV9712 | |||
| Effective Pixels | 1280(H)×720(V) | |||
| Scanning System | Progressive | |||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/10000s | |||
| Min. Illumination | Color: 0. 1Lux, B/W: 0.01Lux ; | |||
| S/N Ratio | >50dB | |||
| Camera Features | ||||
| Max. IR LEDs Length | N/A | |||
| Day/Night | Auto / Color / B/W | |||
| Backlight Compensation | BLC | |||
| White Balance | Auto | |||
| Gain Control | Auto/Manual | |||
| Noise Reduction | 2D | |||
| Privacy Masking | N/A | |||
| Lens | ||||
| Focal Length | 4X Zoom 3-12mm lens | |||
| Max Aperture | F1.6 | |||
| Angle of View | 68.9°-20.5° | |||
| Mount Type | MTV mount (Interchangeable Lens) | |||
| Video | ||||
| Compression | H.264 / MJPEG | |||
| Frame Rate | Main Stream | 1MP HD 720P (1280*720) 25fps | ||
| Sub Stream | VGA 640*360 25FPS | |||
| Bit Rate | 32-4096Kbps,Supports CBR/VBR | |||
| Audio | ||||
| Compression | G.711 | |||
| Interface | 1/1 channel In/Out | |||
| Network | ||||
| Ethernet | RJ-45 (10/100Base-T) | |||
| Protocol | TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP | |||
| ONVIF | ONVIF Ver. 2.0 | |||
| Max. User Access | 10 users | |||
| Smart Phone | iPhone, iPad, Android | |||
| Wireless protocols | 802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2 | |||
| General | ||||
| Power Supply | DC12V | |||
| Power Consumption | <6w< td=""> | |||
| Working Environment | -10°C~+60°C, 10%~90% | |||
| Ingress Protection | IP66 | |||
| Dimension | 182mm (L) * 128mm(W) * 128mm(H) | |||
| Weight | 1.32 Kg | |||
| Package Dimension | 200mm*200mm*200mm | |||
| Package Weight | 1.6 KG | |||
| Approvals | CE FCC RoHS | |||
