1080P HD IP Dome Camera IGV-HD3200

Title:H.2642.0MegapixelIP Camera , Mini Housing,Waterproof, Support 1080P (1920*1080) HD 720P(1280*720), Motion Detection

Features:

• 1/3" Progressive Scan CMOS AR0331

• H.264 encoding,1080P (1920*1080), 720P(1280*720

• Embedded Linux System , Built-in Web Server, Remote Setup

• 3.6mm Fixed Focol lens

• Build-in , image snapshot, Title OSD, DDNS

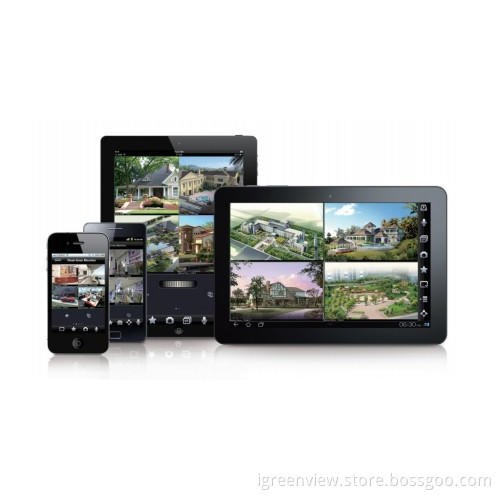

• Support iPhone/Android Smart Phone

• Free 64CH CMS Software

• Support up to 10 users online simultaneously

• Support NVR from Milestone/Axxon/NUUO/geovision/synology/Hikvision/Dahua/Kodak etc.

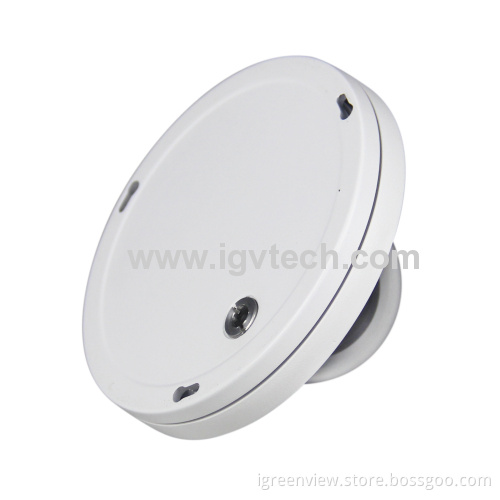

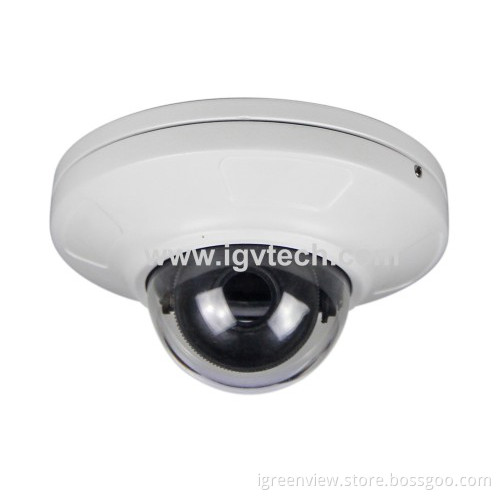

Picture:

1080P HD IP Dome Camera

Specification :

Model		IGV-HD3200
Hardware
Sensor		1/3" Progressive Scan CMOS AR0331
Effective Pixels		1080P (19201080), 720P(1280720)
Min.Illumination		Color: 0. 1Lux, B/W: 0.05Lux ;
Day / Night		N/A
IRLED		N/A
Max S/N Ratio		39dB
Electronic Shutter		Rolling Shutter
Interfaces
Optical lens	Interface	MTV mount (Interchangeable Lens)
	Lens	Fixed Iris, Manual Focus
	Focal Length	Fixed Focal 3.6 mm
	H View Angle	75.7°
Network Interface		10/100M BASE-TX,RJ-45 connector
Audio video encoding
Video Compression		H.264 Main Profile; MJPEG/JPEG Baseline
Resolution	Main Stream	1080P(19201080)25fps/HD 720P (1280720) 25fps
	Sub Stream	D1 704*576 25FPS / CIF25FPS
Video Bitrate		2560 Kbps,Supports CBR/VBR
Title OSD		Supports channel name, date, information overlay;
		OSD location is adjustable
Image Orientation		image flip and mirror
Auto Image Control Functions		Auto Exposure Control (AEC); Auto White Balance (AWB); Auto Band Filter (ABF)
		Auto Black Level Calibration (ABLC)
Image Controls		Color saturation, hue, gamma, sharpness (edge enhancement), lens correction,
		defective pixel canceling, and noise canceling
Audio Compression		N/A
Two Way Audio		N/A
Data transmission and storage
Data storage		Video and Image
Recording		Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output		N/A
Network protocol		TCP/IP , UDP , RTP , RTSP , RTCP , HTTP, DNS , DDNS , DHCP ,NTP , PPPOE ,SMTP , UPNP
ONVIF protocols		Support 2.0 version
Remote View	PC	IE 6.0~8.0 , Firefox , Chrome ;max 10users
	Mobile Phone	iPhone/,Android
General Parameters
Environmental Casing		Metal Housing (IP66 Rated), Indoor/Outdoor Use
Installation		Brackets Included, Wall Mount
Operating Temperature		-10 °C ~ 50 °C
Operating Humidity		0% -85% RH
Power		DC12V 1A
Power Consumption		5W(MAX)
Dimension		￠120mm*67.5mm
Weight		0.36KG
Package Dimension		160mm160mm115mm
Package Weight		0.45KG
Approvals		CE /FCC/ RoHS
