2.8"lcd Cctv Camera Tester Support 11 Hours Working Time

2.8"LCD CCTV camera Tester IGV-TS90:
● PTZ controller,
● UTP cable tester,
● PTZ data analyst, PTZ address scanning
● 2.8"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable,
● NTSC/PAL auto display, Video Level testing, NTSC/PAL colorbar generator,
● PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, Lithium Ion Polymer Battery support 11 hours working time.

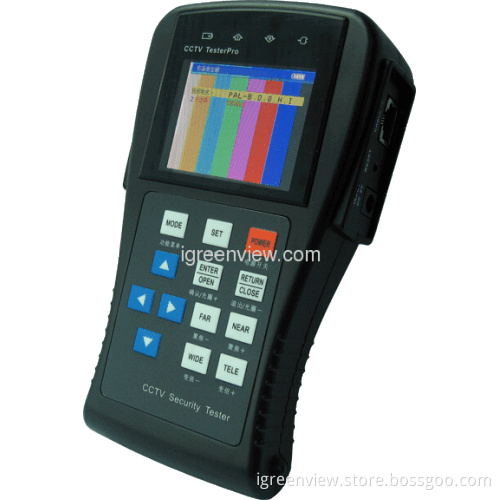

cctv camera tester(2.8"LCD display) Picture:

product appearance	IGV-TS90
display	2.8' TFT LCD
liquid crystal color adjustment	brightness/contrast/saturation could be adjusted
back light adjustment	image can be seen clearly under highlight
video signal level test	support
keyboard pressed key	the keyboard is big/waterproofing/usability
communication port	Use general port of RS232/RS485/RS422 RS485 and dispose RS485 line for convenience and durable.
baudrate	150/300/600/1200/2400/4800/9600/19200bps
colorbar generator	Output or receive seven different forms of video color bar to tester monitor,cable or other equipment/the colored pattern strip sends out,simultaneously may receive the transmission of the coloring strip,the test is more direct-viewing easily
UTP cable test	test random two or more than two mesh wires,and demonstrates the connection order and the mesh wire serial number on the screen.May work as wiring project jack box.
PTZ controlling and capturing data of RS485	may capture and demonstrate the PTZ controller number of RS485/RS232 and judge if the RS485/RS232 data are frequency or correspond normally.
PTZ controlling protocol	more than 20 kinds of protocols(Pelco-P/Pelco-D/Panasonic/Lilin/SAMSUNG and so on)
battery capacity demonstration	the battery capacity could be displayed above the screen,is more direct-viewing
PTZ adress scanning	assist the engineer scanning the dome carmera quickly or controlling the PTZ communication address
PTZ continuing rotate test	PTZ continuing rotate test be used to test whether the "PTZ rotate"is normal.
DC12V1A output	no support
audio test	no support
digital multimeter	no support
optical power meter	no support
shock gum case and wrist strap	no support
power supply way	high-end polymer lithium battery and external power supply,double power supply way.built-in 3.7V polymer lithium battery,capacity 2000mAh.the tester is stabler and is safe,duration of charging short(4 hours),the period of revolution is 11 hour.the polymer lithium battery is safer durably.
