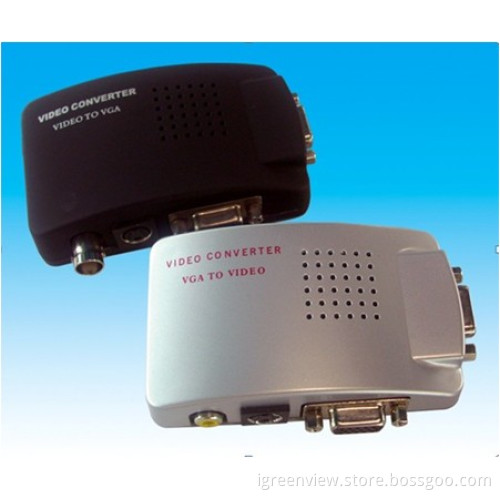

AV,CVBS,S-Video,BNC to VGA Converter IGV-VA01

Use display device in stead of monitor, consumedly save the cost of monitoring.

Product description:
It can change the interlacing signals of s-video of video into VGA signals non-interlacing. Let your monitor change into flicker free display. Flicker free display is good display. It also can be connected to VCD/DVD/Webcam/set-top box etc. And made your monitor be like digital TV.

1. Input/Output
Input: 1xAV(BNC), 1xS-Video, 1xVGA
Output: 1xVGA

2. Output resolution
800*600@60Hz, 800*600@75Hz, 1024*768@60Hz,
1280*1024@60Hz, 1440*900@60Hz, 1680*1050@60Hz,
1920*1080@60Hz, 1920*1200@60Hz

3. Input format
AV/S-Video Input: Auto-Detect PAL, NTSC, SECAM
VGA Input: BYPASS

4. Key

AV CVBS S-Video BNC to VGA Converter_key

Name	Description
1. Input	Input selection: AV(CVBS)>>SV(S-Video)>>VGA>>AV(CVBS)Note:Reset feature: press the input key and power on the set will reset all the setting.
2. Menu	Menu: Brightness, Contrast, Sharpness, Saturation, Tint, HP(Horizontal position), VP(Vertical position)
3. Freeze/+ 4. Resolution/-	- If the menu is displayed on the screen, e.g. Brightness, Contrast, Sharpness, Saturation, Tint, HP(Horizontal position), VP(Vertical position): "Freeze/+" works as "+", Such as increase the Brightness, shift the horizontal position. “Resolution/-” works as “-”, such as decrease the Brightness, etc.- If no menu is displayed on the screen: “Freeze/+” works as “Freeze” “Resolution/-” works as “resolution Selection” for 800600@60Hz, 800600@75Hz, 1024768@60Hz, 12801024@60Hz, 1440900@60Hz, 16801050@60Hz, 19201080@60Hz, 19201200@60HzNote: Press the Resolution/- will change the output resolution from 800600 to 19201200. If the resolution is too high and your monitor doesn't support it, please keep on press this key to change the resolution to a lower format.. Also, you can press the input key and power on the set will reset all the setting.

Features:
1. Supports PAL/NTSC/SECAM
2. Output resolution: up to 1920X1200
3. Brightness, Contrast, Sharpness, Saturation, Tint, HP(Horizontal position),VP(Vertical position)
4. OSD
5. Freeze
6. Digital comb filter, no more cross color
7. 3D motion adaptive de-interlacing
8. Standard VGA output works with all standard monitor
9. 5V/1A AC-DC adapter

AV CVBS S-Video BNC to VGA Converter

Name	Description
VGA OUT	VGA output for monitor
AV(CVBS), BNC IN	AV(CVBS) input for DVD, camera, etc
S-Video IN	S-Video for DVD, camera, etc.
VGA IN	VGA input for PC
DC 5V	5V/1A AC-DC adapter
Power LED	Power LED

Connection Image
