Copper/black/white Pcb 3528 Smd Led Strip Lights

Copper/black/white Pcb 3528 Smd Led Strip Lights

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

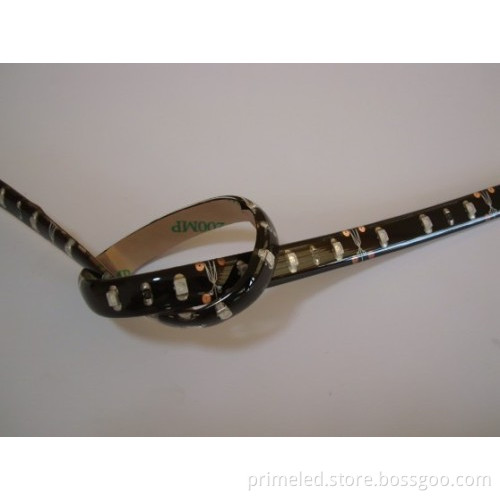

copper black and white PCB 3528 SMD LED strip lights

To meet diiferent perference for color of PCB, 3528SMD Waterproof LED strip lights are provided in three PCBs: copper, black and white.

Waterproof 3528 LED strip lights come with 3528SMD, 60/120LEDs/M, 12/24V input, All single colors, like white, warm white, red, green, blue, yellow, pink, orange and UV are available.

Prime Waterproof LED Strip lights are available in 3 varieties:

B) Water resistance type with an encapsulated plastic Gel, 3M tape on backing, IP66;
C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66
D) Waterproof type with silicone jacket and Gel inside, IP67.

Technical Data:

Part NO. (IP66)	PFS-3528W60B-12	PFS-3528W120B-12
Part NO. (IP66)	PFS-3528W60C-12	PFS-3528W120C-12
Part NO. (IP67)	PFS-3528W60D-12	PFS-3528W120D-12
Voltage:	12V or 24V	12V or 24V
Size:	10mm wide, 5 meters a reel	10mm wide, 5 meters a reel
LED Type:	3528SMD	3528SMD
Quantity:	60 LEDs per meter	120 LEDs per meter
Power:	4.8W per meter	9.6W per meter
Color:	red, green, blue, yellow, white, warm white, pink, orange	red, green, blue, yellow, white, warm white, pink, orange
PCB in:	Copper, white or black	Copper, white or black
Beam Angle:	120 degrees	120 degrees
Expected Life	50,000hours	50,000hours
Warranty:	Two Years	Two Years

FAQ:

1. Can we cut them in short pieces, and re-joint?

Yes, can be cut in every 3 LEDs, minimum, and can re-joint with cables.

2. How Can I make them dimmable or color-changing?

First, you need a power supply (transformer) to convent main voltage to 12V or 24VDC;

Second, get a dimmer or controller from us or your market, wire them follow our instruction, and then power on;

Third, you go¡

3. How can I do with them to work at 10meter long or more?

If only strips without dimmer or controller, get power in parallel; Waterproof 3528 LED flex Strip, white,on White PCB

Waterproof 3528 LED flex Strip, white,on White PCB

How Does a led strip come out?

60led/m Warm White LED Strip Lights

If waterproof type with resin cover,

How to order samples?

1, Samples are available at your costs;

2, You tell us which items, color and quantity you want, 5pcs as MOQ;

3, I will issue a Performa invoice for the samples order;

4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

5, Samples will be sent out by DHL or UPS, as you like.

Warranty Terms:

1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

2. Prime LED will take the duty, and send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
